Height 32.0"
Height to Hinge Cap 32.25"
Width 23.63"
Depth 23.5"
Depth with Handle 24.25"
Depth with door at 90° 45.0"
Capacity 5.5 cu.ft.
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs.
Shipping Weight 113.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.8
High Side PSI 285.0
Low Side PSI 88.0
Level Legs Qty 4
Interior Light Yes
Interior Height 26.25"
Interior Width 21.0"
Interior Depth 17.75"
Compressor Step Height 5.5"
Compressor Step Width 21.0"
Compressor Step Depth 5.5"


PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Door reversal to left hand swing
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Agion Door
Treat the door with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Extra keys available for purchase
PHDC Access Port
Factory installed probe hole and dry contact for monitoring equipment
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

California residents:
click here for information on Proposition 65


32" H x 23.63" W x 23.5" D



Invalid Format
AccuCold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750 Series features 24" wide all-refrigerators sized for freestanding use in ADA compliant settings.

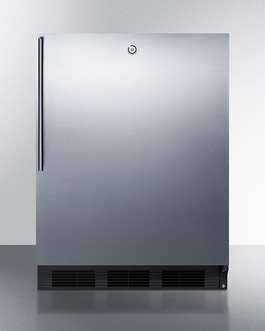

The AL752LBLSSHV is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a black cabinet and stainless steel wrapped door with a factory installed lock. A thin handle with a 14mm diameter completes the sleek, modern look.

Inside, the AL752LBLSSHV utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

For a built-in version of this unit, see the AL752LBLBISSHV. For more finish options, browse the entire AL750 Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.


ADA compliant
32" height for use in settings complying with ADA guidelines for lower counter height
Slim counter height dimensions
Less than 24 inches wide with a full 5.5 c.f. capacity
Fully finished black cabinet
Allows the unit to be used freestanding
Factory installed lock
Keyed lock offers added security
Stainless steel door
Durable design with lasting elegance
Professional stainless steel handle
Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry
Automatic defrost
Reduced user maintenance with automatic defrost operation
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Adjustable glass shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Flat door liner
An easy-to-clean flat liner accepts large trays
Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
