SCRI230

Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

DISCONTINUED- REPLACED BY SCRR231

80.25" H x 28.25" W x 30.63" D

(204cm H x 72cm W x 78cm D)

OVERVIEW

  • DISCONTINUED: Replaced by SCRR230
  • Complete construction in durable, easy-to-clean 304 grade stainless steel
  • Self-closing door reduces energy consumption
  • Digital thermostat with external readout for easy and accurate temperature control
  • True frost-free operation saves you maintenance by preventing icy buildup
  • Slide-out shelves adjust to any level
  • NSF Listed for use in foodservice establishments

SPECIFICATIONS

Overview
Height of Cabinet 80.25" (204 cm)
Width 28.25" (72 cm)
Depth 30.63" (78 cm)
Depth with Handle 30.63" (78 cm)
Depth with door at 90° 57.0" (145 cm)
Capacity 23.0 cu.ft. (651 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Sanitation NSF
Amps 5.8
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 309.0 lbs. (140 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 10.58oz.
High Side PSI 190.0
Low Side PSI 90.0
Wheel Qty 4
Interior Light Yes
Dimensions
Interior Height 57.75" (147 cm)
Interior Width 23.5" (60 cm)
Interior Depth 26.25" (67 cm)

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Extra key
Extra keys available for purchase
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

DESCRIPTION

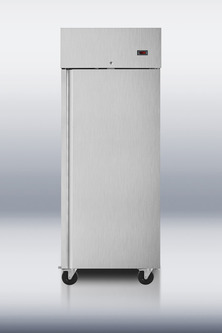

SUMMIT SCRI230 is the ideal reach-in refrigerator for any food service establishment in need of a low maintenance, high quality unit designed for convenience and built for durability.

The commercially approved SCRI230 uses frost-free operation so users never need to worry about manually defrosting the 23 c.f. interior. An oversized, factory balanced refrigeration system maintains the perfect conditions for food storage at temperatures between 33ºF to 38ºF.

Complete 304 grade stainless steel construction means the entire unit is easy to clean and built to last. The self-closing door helps to save energy but will conveniently stay open when swung out to 90º. Sturdy casters support the SCRI230 with locking brakes.

Unique slide-out shelves can easily adjust to any level to accommodate your storage needs. A digital thermostat gives you accurate control, with an external temperature readout so you can adjust settings without even opening the door. A front-mounted lock, reversible door, and interior light are also standard.

The SCRI230 can be perfectly matched to its freezer version, the SCFI235. With commercial approval and full features, this series represents the highest quality at SUMMIT's top value.

FEATURES

Complete stainless steel construction
Simple to clean and built to last
Commercially approved
NSF Approved to Standard 7
Frost-free operation
Let your appliance do the work with a timer defrost heater that continuously keeps ice from forming inside
Self-closing door
Closes to save energy but will remain open when the door is opened at a 90° angle
6 inch casters
Self-locking casters for portability and more sanitary cleanup
Adjustable shelves
Slide-out shelves can sit on any level inside the refrigerator
Digital thermostat
Easy push buttons and an external temperature readout for precise temperature management
Front-mounted lock
Keep contents secure with a key lock on the door
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Interior light
Automatically illuminates when you open the door
Large capacity
23 cubic feet of storage space inside
Matchable to other SUMMIT units
Pair with freezer SCFI235 for a perfect set
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 80.25" (204 cm)
Width 28.25" (72 cm)
Depth 30.63" (78 cm)
Depth with Handle 30.63" (78 cm)
Depth with door at 90° 57.0" (145 cm)
Capacity 23.0 cu.ft. (651 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Sanitation NSF
Amps 5.8
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 309.0 lbs. (140 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 10.58oz.
High Side PSI 190.0
Low Side PSI 90.0
Wheel Qty 4
Interior Light Yes
Dimensions
Interior Height 57.75" (147 cm)
Interior Width 23.5" (60 cm)
Interior Depth 26.25" (67 cm)

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Extra key
Extra keys available for purchase
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
SCRI230.pdf
Download
TECHNICAL DRAWING (.dwg)
SCRI230_REFRIGERATOR.dwg


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
