SPECIFICATIONS

Overview
Height to Cabinet 34.13"
Height to Hinge Cap 34.38"
Width 23.63"
Depth 24.25"
Depth with Handle 25.75"
Depth with door at 90° 47.0"
Capacity 5.7 cu.ft.
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs.
Shipping Weight 120.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 3.5oz.
High Side PSI 235.0
Low Side PSI 140.0
Interior Light Yes
Dimensions
Interior Height 27.63"
Interior Width 21.0"
Interior Depth 17.25"

AVAILABLE UPGRADES

Exterior
CAS3 3" Casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HUM Humidity Sensor
Humidity sensor with min/max readout
LHD
Door reversal to left hand swing
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KEY
Extra keys available for purchase


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF590SSHHMEDDT

Frost-free operation for optimum cooling

34.13" H x 23.63" W x 24.25" D

OVERVIEW

WHERE TO BUY

Invalid Format
AccuCold by Summit Appliance offers the MEDDT Series all-refrigerators with advanced features for use in medical, scientific, pharmaceutical, and laboratory institutions.

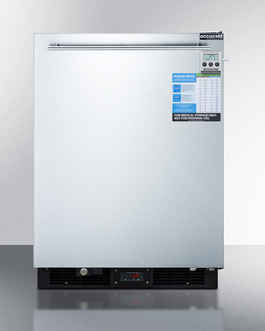

Made in North America, the FF590SSHHMEDDT is a 24" wide all-refrigerator. The front-breathing design allows full built-in installation under counters, while the fully finished cabinet also allows freestanding use. The exterior features a textured black cabinet and stainless steel wrapped door with a professional handle. A front lock offers added security. The digital thermostat is located in the front kickplate for easy and precise temperature management. A NIST calibrated temperature alarm installed on the door's exterior warns when the unit is out of range and also features a current and high/low temperature readout. This unit includes a hospital grade 'green dot' cord for added safety in high traffic environments and a preinstalled probe hole for users to connect their own monitoring equipment.

Inside, the FF590SSHHMEDDT offers 5.7 cu.ft. of storage. Frost-free operation ensures a low maintenance performance, with fan-forced cooling to keep the temperature stable throughout. Adjustable shelves offer flexible storage and the flat door liner conforms with the CDC's recommendations for refrigerator design.

In addition to the feature package included with this unit, the FF590SSHHMEDDT can be customized with additional options, including a self-closing door and open door alarm.

FEATURES

Frost-free operation
Eliminates the need to manually defrost the 5.7 cu.ft. interior
Built-in capable
Front-breathing design allows fully recessed installation under counters
Factory installed lock
Keyed lock offers added security
Digital thermostat
Electronic controls ensure easy and intuitive temperature management
Alarm/thermometer
NIST traceable temperature alarm sounds if the interior goes out of high/low temperature range. Alarm is externally mounted on the door and includes a current and high/low temperature readout
Hospital grade cord
Secure three-pronged cord for added unit safety
Stainless steel door
Professional finish offers lasting durability
Fully finished textured black cabinet
Allows the unit to be used freestanding
Fan-forced cooling
Interior fan ensures an even temperature throughout the interior
Stainless steel handle
Thin (14mm diameter) handle is mounted horizontally for a sleek look
Adjustable shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Interior light
Automatically illuminates when the door is opened
Sealed back
Lower maintenance design
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
