11.7 Cu.Ft. Dipping Cabinet

SKU: NOVA35PDC
Fully assembled with sneezeguard, tub holder baskets, casters, and digital thermostat for easy ice cream service
Estimated Time to Ship:

5 to 7 days

*Additional features may vary

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
45.5" H x 43.0" W x 27.25" D
(116cm H x 109cm W x 69cm D)

Overview
Height of Cabinet 45.5" (116 cm)
Width 43.0" (109 cm)
Depth 27.25" (69 cm)
Capacity 11.7 cu.ft. (331 L)
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 7.2
Voltage/Frequency 115 V AC/60 Hz
Weight 152.0 lbs. (69 kg)
Shipping Weight 144.0 lbs. (65 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101064895
Freezer
Door Swing Sliding
Interior Height 26.0" (66 cm)
Interior Width 36.75" (93 cm)
Interior Depth 21.0" (53 cm)
Thermostat Type Digital
Refrigerant Type R290a
Refrigerant Amount 3.03 oz.
High Side PSI 345.0
Low Side PSI 140.0
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 7.88" (20 cm)
Compressor Step Depth 21.0" (53 cm)
Temperature Range -13 to 23ºF

Commercially approved

UL-S listed to NSF-7 Standards for use in commercial establishments

Sneezeguard

Durable polycarbonate sneezeguard with light is pre-installed

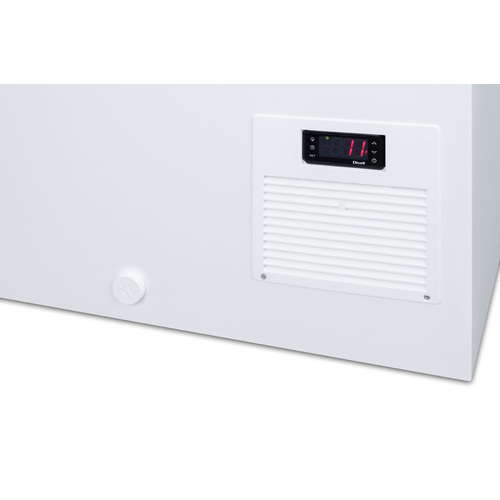

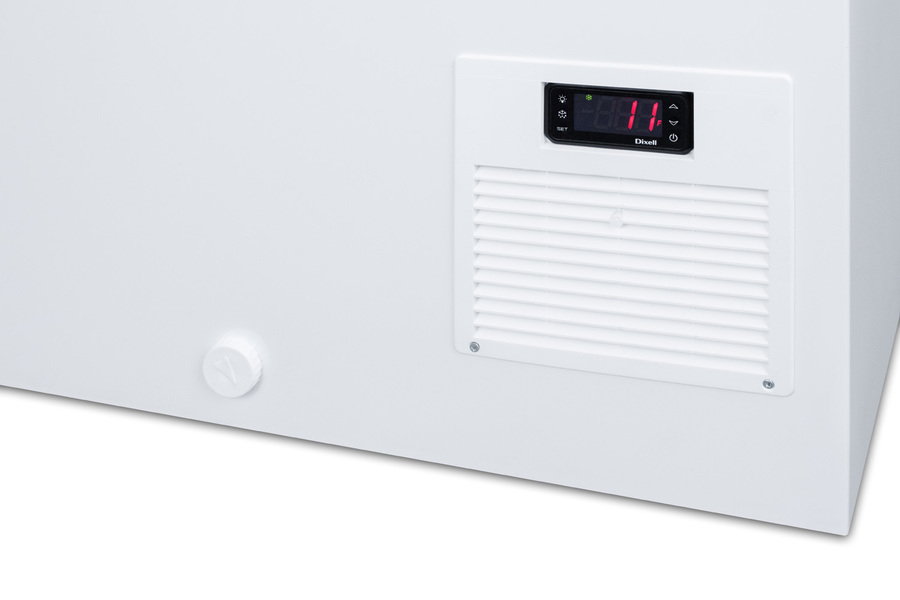

Digital thermostat

Electronic controls for more precise temperature management

Wide temperature range

Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

Ice cream tub holders

Three epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place

Holds 10 standard 3 gallon tubs

Unit can store 4 tubs on the floor and display an additional 6 using the provided baskets

Sliding glass lid

Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

Strong insulation

3" thick insulation helps to ensure items stay cold

Manual defrost

Static cooling system for improved temperature stability

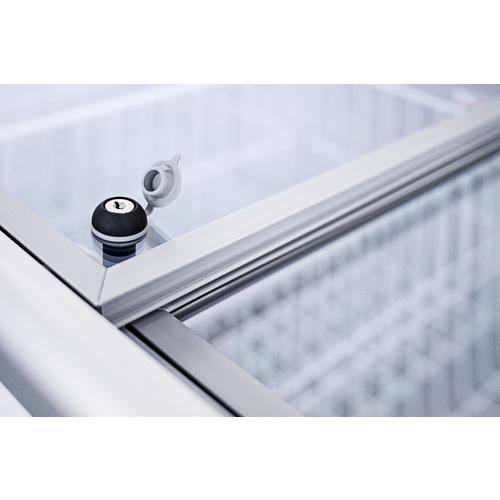

Removable lock

A keyed lock is included for optional use

Steel interior

Durable construction in a white finish for easy visibility

Casters

Heavy duty wheels for smooth mobility (ship unassembled)

Fan-cooled compressor

Offers improved temperature performance throughout the interior

Defrost drain

Front located for easier defrosting

Light

Sneezeguard light for added visibility

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial's line offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving.

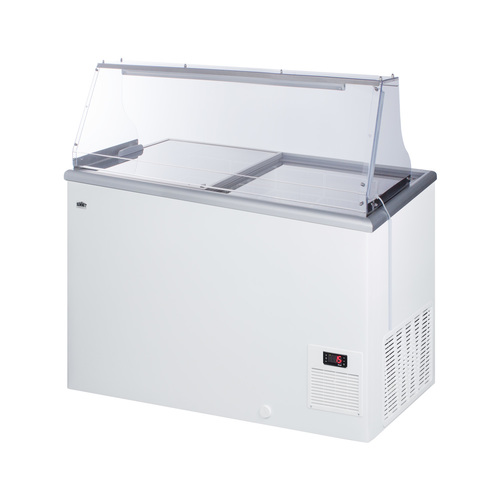

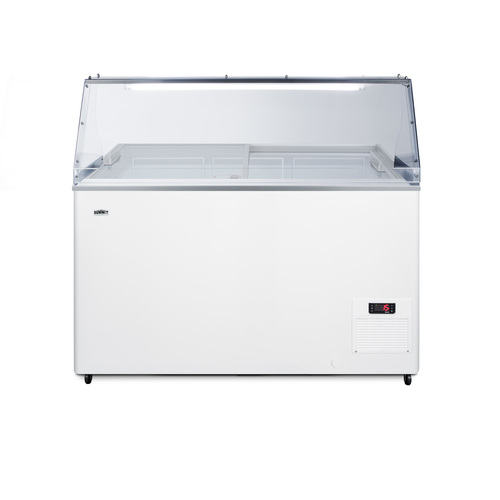

Made for us by Elcold in Denmark, the NOVA35PDC is a 43" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top.  Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

Inside, the NOVA35PDC features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 3 wire tub holder baskets with plastic lids to hold 6 11" round/3 gallon ice cream tubs, with room to store an additional 4 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.

The NOVA35PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available.

Note: Gelato pan holders are also available. To substitute the baskets, contact our sales team at 718-893-3900 ext. 507.


Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
