H1618SS

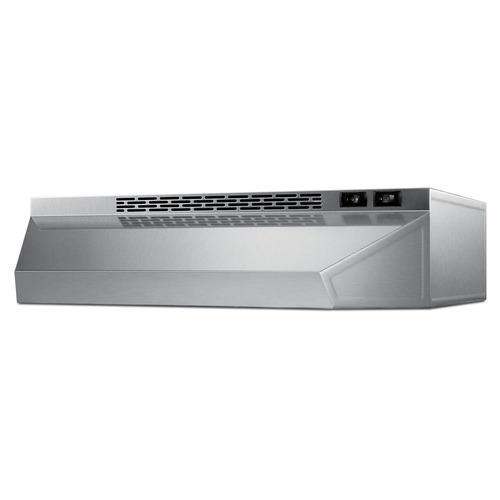

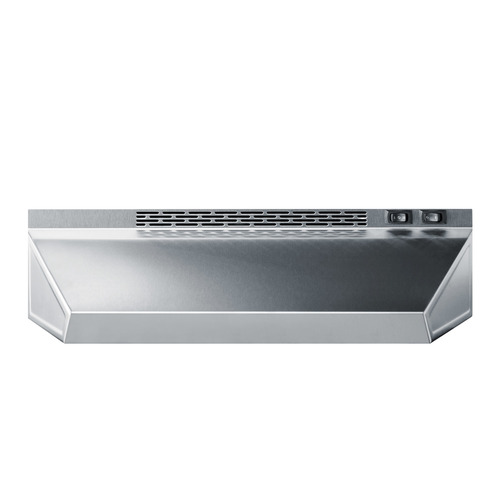

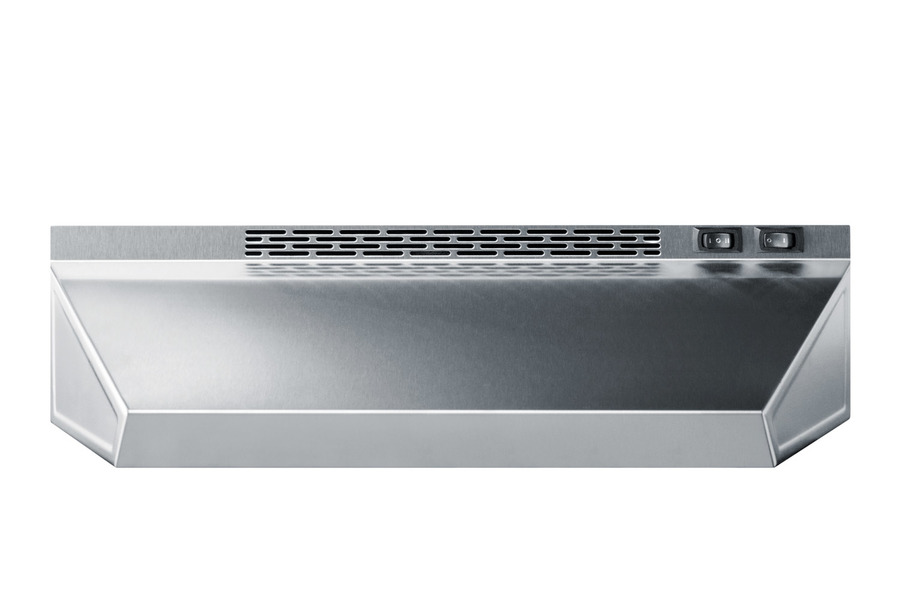

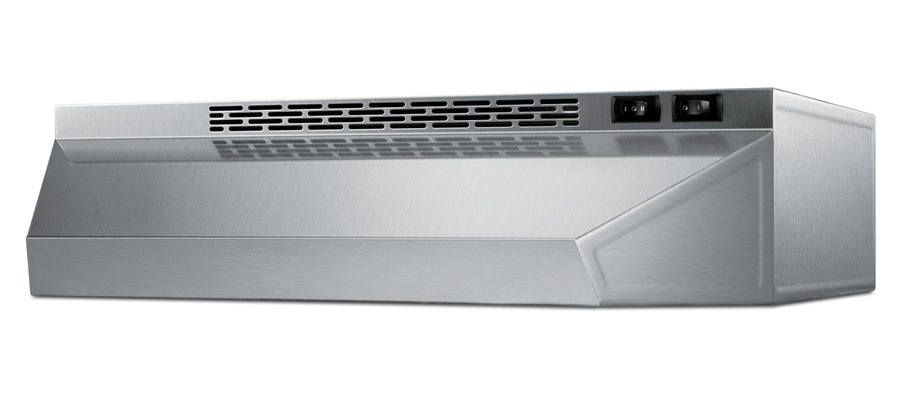

18" Under Cabinet Convertible Range Hood

SKU: H1618SS
Made in the USA and sized at just 18" wide, ideal for use with slimmer cooktops
DISCONTINUED- REPLACED BY HC20SS
5.0" H x 17.88" W x 18.0" D
(13cm H x 45cm W x 46cm D)

Overview
Height of Cabinet 5.0" (13 cm)
Width 17.88" (45 cm)
Depth 18.0" (46 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 115 V AC/60 Hz
Weight 15.0 lbs. (7 kg)
Shipping Weight 17.0 lbs. (8 kg)
Parts & Labor Warranty 1 Year
UPC 761101044859

Exterior
PTC-Cord - Factory-installed 3' long cord with 3-prong plug
Factory-installed 3' long cord with 3-pronged plug

18" width

Designed to match 18 inch wide cooking surfaces; also available in 20, 24, 30, and 36 inch widths

Convertible range hood

Use top or rear venting or convert into non-vented recirculating mode

Stainless steel finish

White, black, and bisque hoods also available in same size

Two-speed fan

Variable speed for more venitlation options

Light

Switchable light offers more convenience in your kitchen

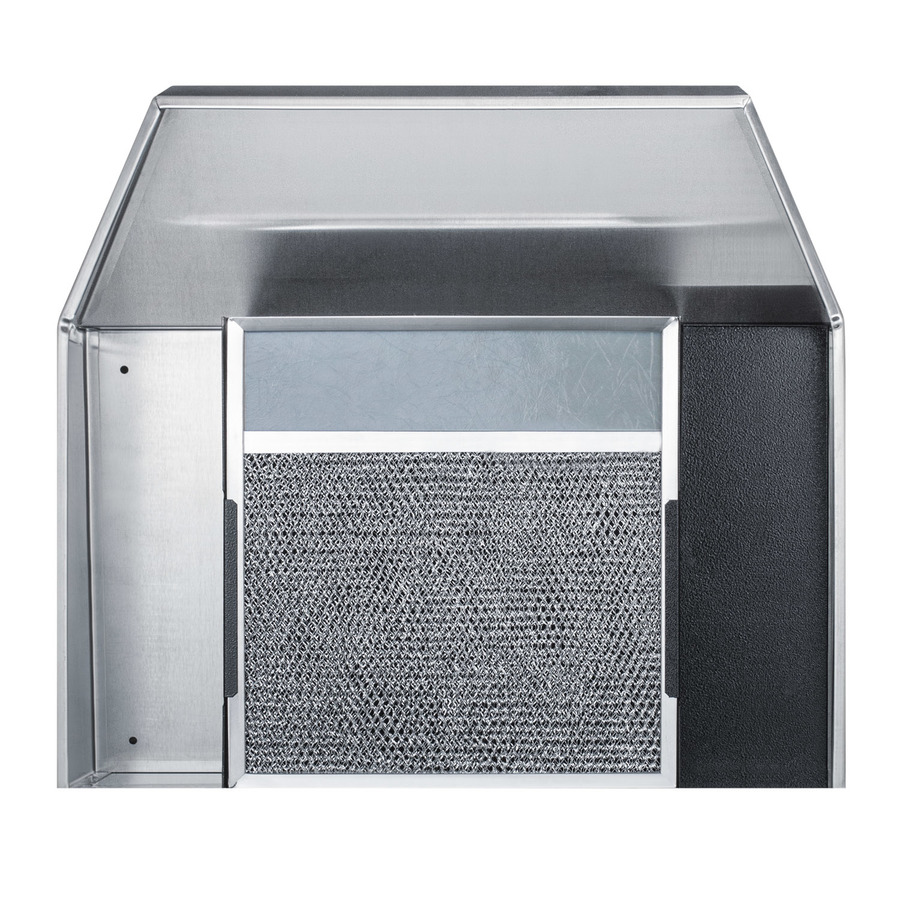

Aluminum-charcoal filter

Provides thorough filtering to reduce odors

Made in the USA

Solidly constructed for years of use

More sizes available

Additional sizes can be specially ordered (minimums apply)

SUMMIT is one of the market's leading suppliers of quality range hoods, with solid construction and a wide selection of choices for every kitchen.

The H1600 series features our most versatile convertible range hoods that can be used with top or rear venting and easily converted into non-vented (recirculating) mode. These hoods offer the features all customers want, including a two-speed fan, switchable light, and aluminum-charcoal filter.

The H1618SS is an 18inch wide range hood made in a stainless steel finish. Additional units are available in white, black and bisque and come in 20, 24, 30, and 36 inch widths to match most ranges. All SUMMIT range and shell hoods are made in the U.S.A.

Download
BROCHURE w/ DRAWINGS
H1618SS.pdf
Download
TECHNICAL DRAWING (.dwg)
H1600HOODSERIESA0C2000.dwg

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
