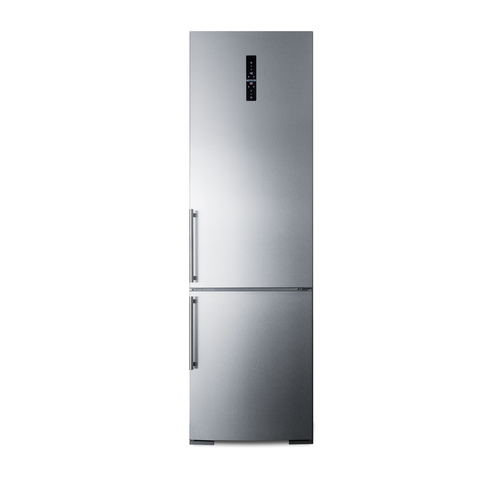

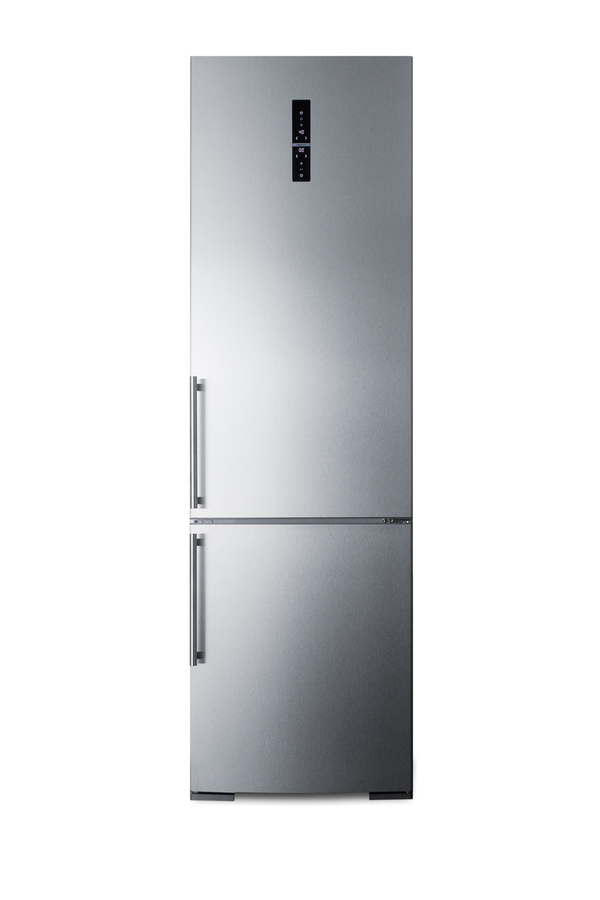

24" Wide Built-In Bottom Freezer Refrigerator With Icemaker

SKU: FFBF181ESBIIM
Made in Europe and designed for built-in installation in space-challenged kitchens, with a factory-installed icemaker for added convenience
DISCONTINUED
79.25" H x 23.63" W x 25.25" D
(201cm H x 60cm W x 64cm D)

Overview
Height of Cabinet 78.75" (200 cm)
Height to Hinge Cap 79.25" (201 cm)
Width 23.63" (60 cm)
Width with Door Open 24.63" (63 cm)
Depth 25.25" (64 cm)
Depth with Handle 27.25" (69 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 12.8 cu.ft. (362 L)
Defrost Type Frost-Free/Automatic
Door Stainless Steel
Cabinet Platinum
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 498.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 185.0 lbs. (84 kg)
Shipping Weight 3.0 lbs. (1 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101053592

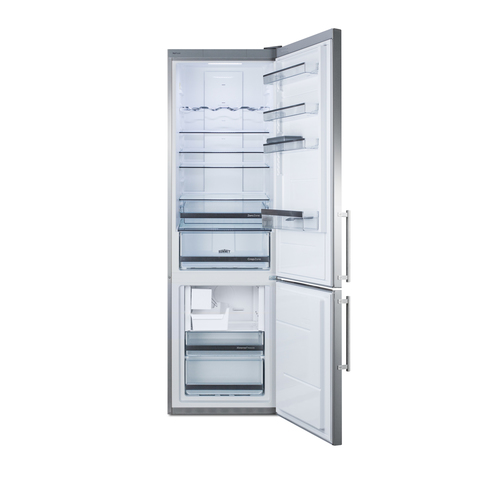

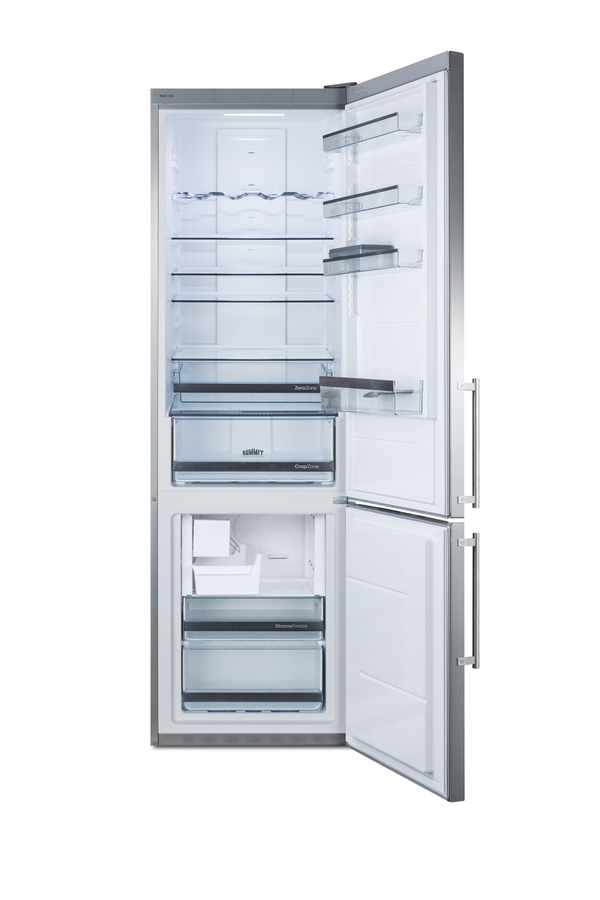

Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 5
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 44.0" (112 cm)
Refrigerator - Interior Width 19.25" (49 cm)
Refrigerator - Interior Depth 17.5" (44 cm)
Refrigerator - Capacity 9.35 cu.ft
Refrigerator - Shelf Type Glass and Scalloped
Refrigerator - Shelf Qty 4
Refrigerator - Full Door Shelves 4
Refrigerator - Temperature Range 34º to 46ºF
Freezer - Interior Height 24.0" (61 cm)
Freezer - Interior Width 16.5" (42 cm)
Freezer - Interior Depth 13.0" (33 cm)
Freezer - Capacity 3.46 cu.ft
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 5.11 oz.
High Side PSI 215.0
Low Side PSI 36.0
Level Legs 2
Freezer - Temperature Range -6º to 6ºF
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 16.5" (42 cm)
Compressor Step Depth 5.0" (13 cm)

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

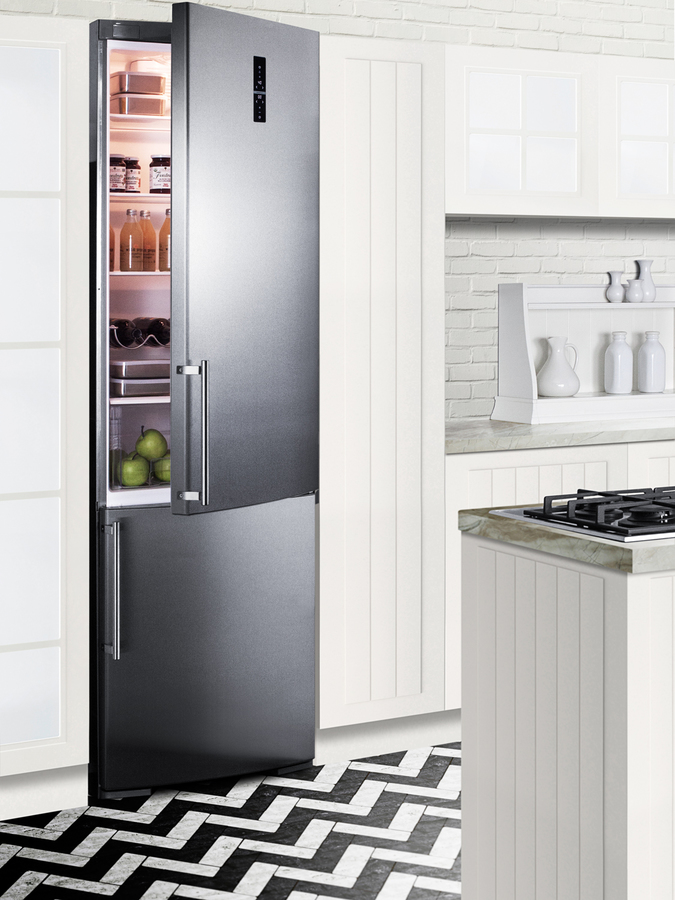

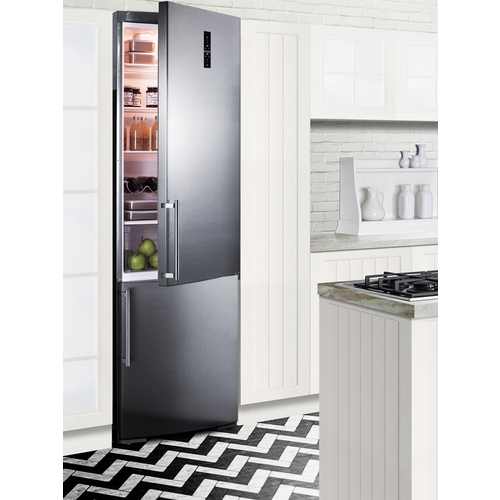

Built-in capable

Front-breathing design allows fully integrated installation

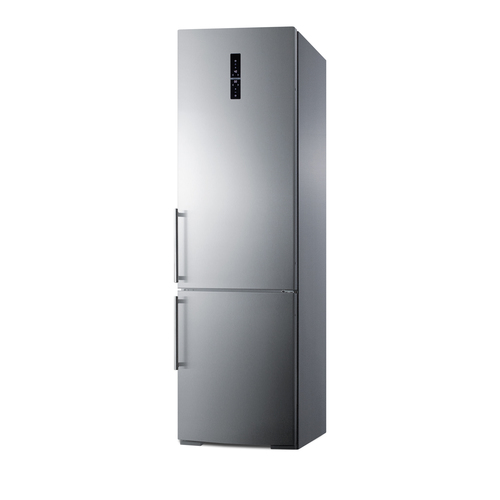

Stainless steel doors

Professional look in high quality stainless steel, with a unique curve to add a modern touch to any kitchen

Bottom freezer

Convenient design keeps all refrigerated storage at eye level for easier use

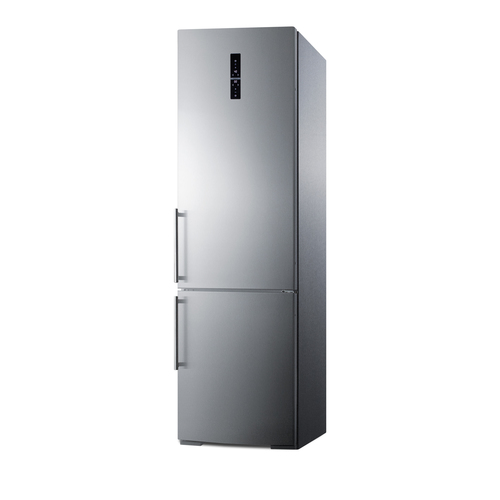

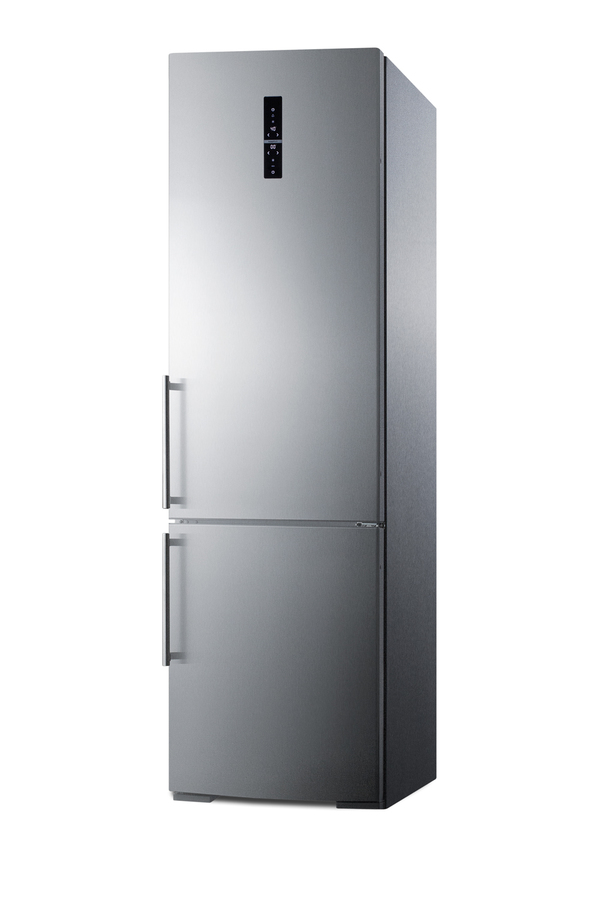

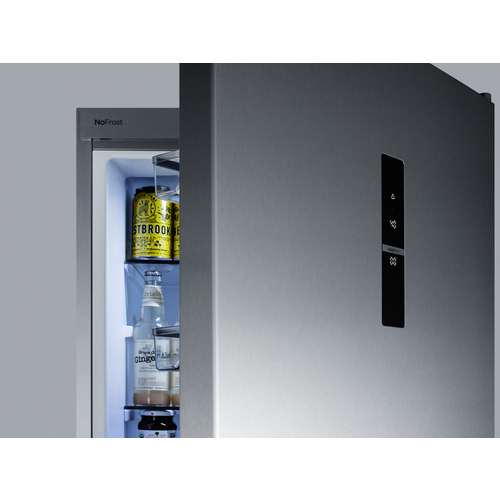

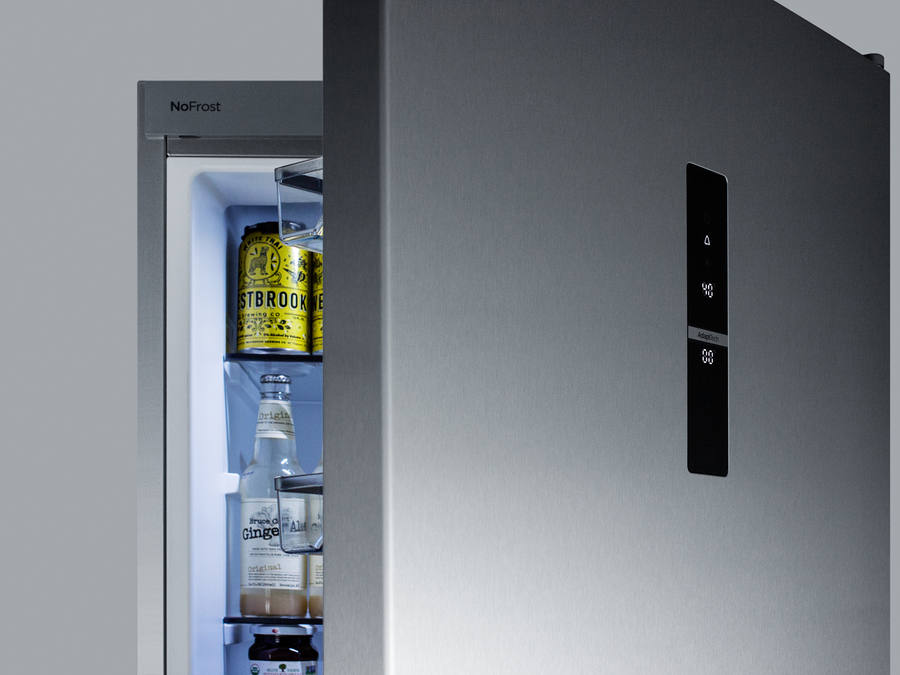

Digital thermostats

Separate digital controls let you adjust the refrigerator and freezer section, with a digital display for added convenience

Adaptive intelligent technology

Innovative sensor technology allows the unit to adjust to your habits, reading your patterns to manage the temperature based on the frequency of door openings and grocery loading

Icemaker

Factory installed icemaker ensures a steady supply of ice, eliminating the need to maintain cumbersome ice trays

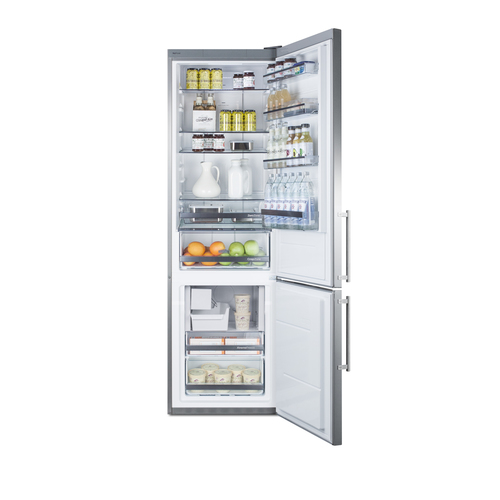

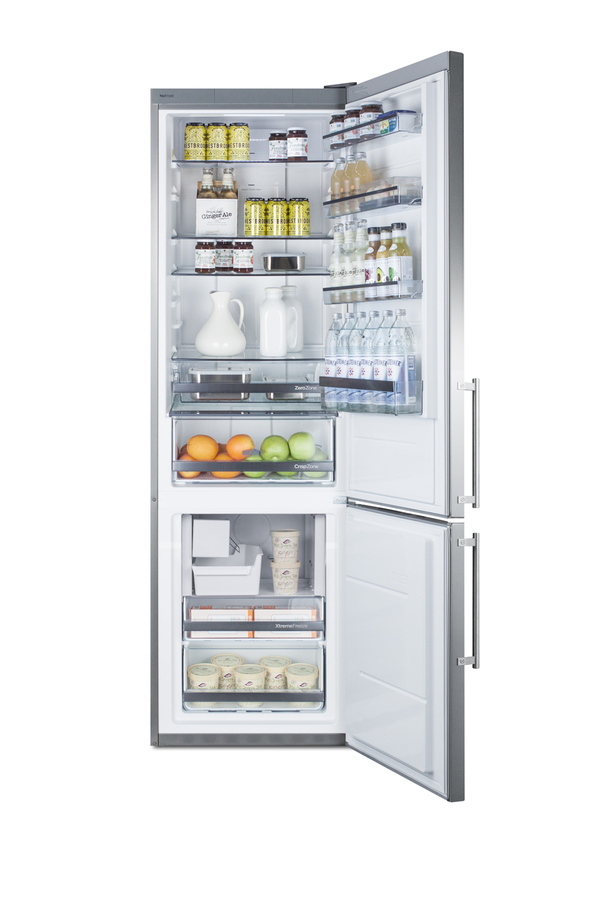

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

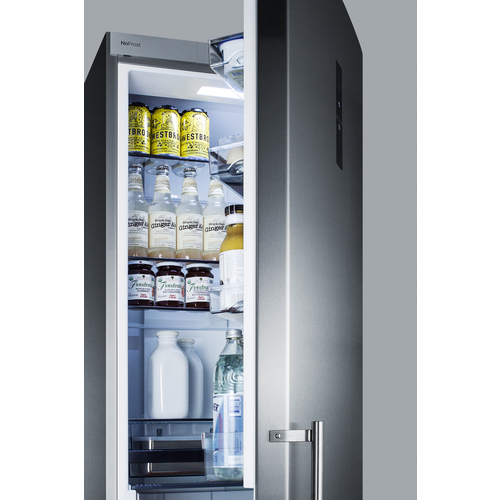

Adjustable door storage

Three door racks can be adjusted in height to accommodate a variety of sizes

Wine shelf

Store bottles safely on an adjustable scalloped steel rack

Humidity controlled crisper

Large crisper drawer allows you to ensure the optimum storage of fruits and vegetables

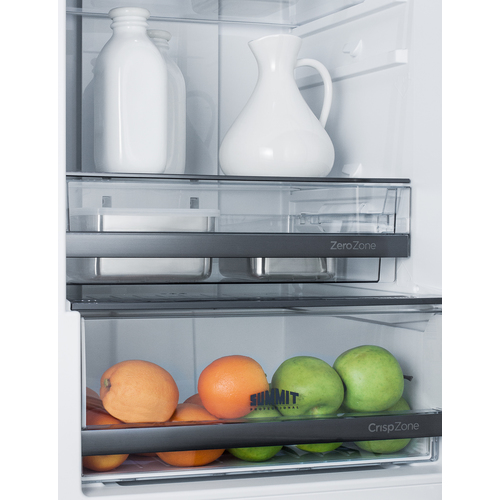

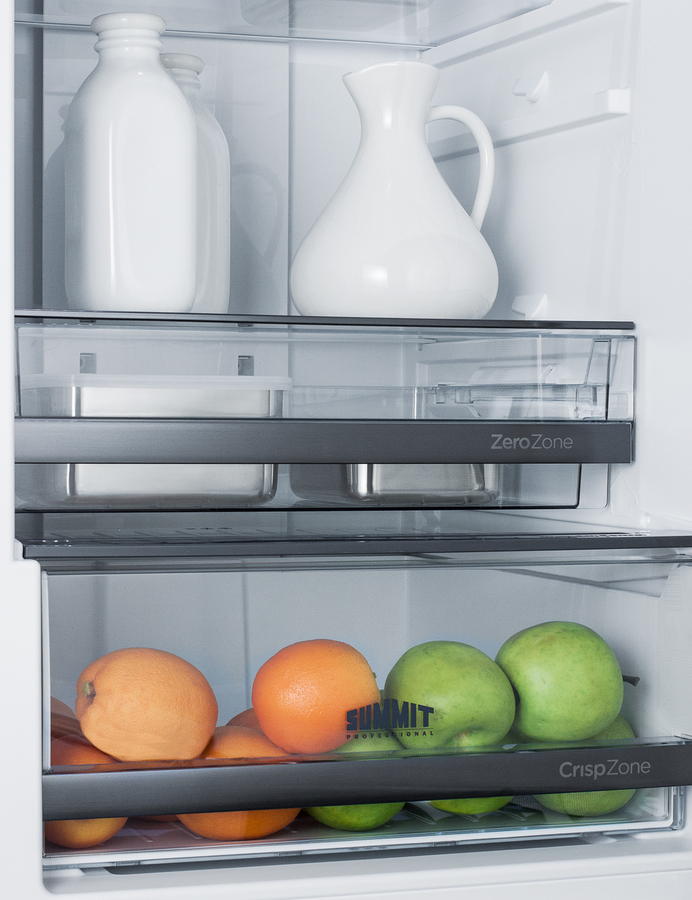

ZeroZone deli drawer

Slide-out drawer allows you to store meats and other deli items at a slightly colder temperature for long-lasting freshness

Multibox storage container

Removable container with a silicone lid and air-tight seal offers a convenient way to store smaller food items with a strong odor, such as blue-vein cheeses or onions

Removable transparent freezer drawers

Unique freezer design keeps the cold inside, even when the door is opened

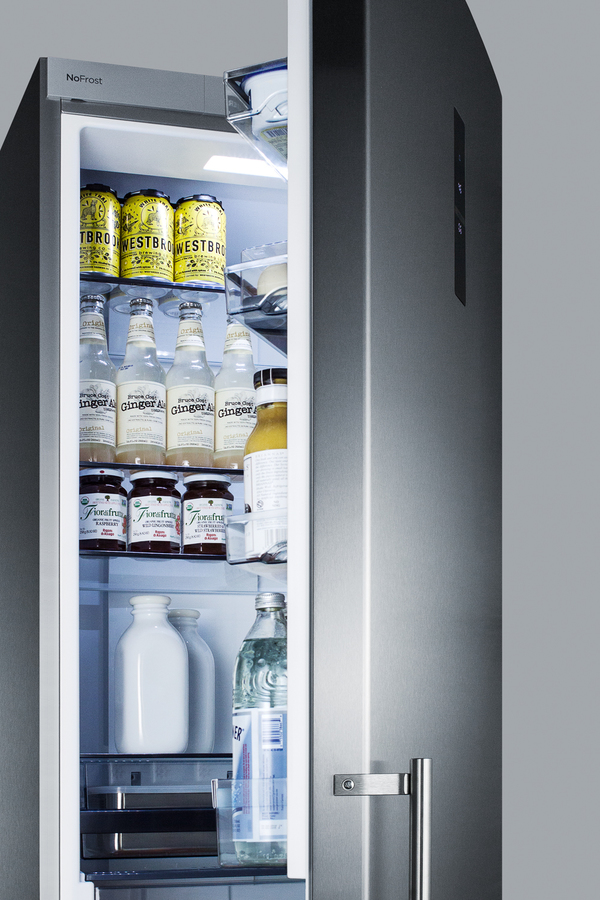

Interior LED refrigerator light

Automatically illuminates when you open the door

No-frost operation

Frost-free freezer section and automatic defrost refrigerator offer low maintenance operation

Open door alarm

Audible alarm will sound if the refrigerator door is left ajar for over one minute

High temperature alarm

Audible alarm will sound if the temperature in the refrigerator or freezer compartment is too high

Power failure alarm

If the temperature exceeds acceptable levels due to power failure, an audible alarm will sound

LED visual alarms

All alarms are both audible and visual, with lamps in the control panel that will illuminate when the alarm is sounded

Intensive cooling & freezing function

Allows you to rapidly cool the refrigerator or freezer section, ideal for bringing newly loaded groceries to a safer storage temperature

Child lock

Temperature controls include a locking function to prevent accidental setting changes

Factory reversible door swing

Unit ships RHD unless ordered reversed in our factory. The doors are not user-reversible

Fully finished platinum cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

SUMMIT's collection of no-frost counter depth refrigerator-freezers provides an attractive and user-friendly answer to small kitchen spaces.

Made for us in Europe, the FFBF181ESBIIM is a bottom freezer refrigerator with a unique 24" W x 25 1/4" D footprint and generous 12.8 cu.ft. capacity. The front-breathing design allows built-in installation for added space savings. It comes in a platinum cabinet finish with stainless steel doors and designer handles. The exterior digital control panel lets you manage the refrigerator and freezer temperature without opening the door, a helpful function for saving energy and not exposing the interior to warmer room temperature. The control panel includes an audible and visual high temperature and open door alarm to help protect stored contents, as well as a child safety lock to prevent anyone from accidentally changing the settings.

Inside, the FFBF181ESBIIM features a fully frost-free freezer compartment and an automatic defrost refrigerator section. The refrigerator section includes adjustable spill-proof glass shelves, as well as a scalloped shelf ideal for storing wine and other bottled beverages. The door features adjustable racks to accommodate a variety of sizes. This unit includes a "ZeroZone" deli drawer ideal for storing meats and cheeses at slightly colder temperatures than the rest of the refrigerator compartment. The large crisper drawer features humidity control for optimum storage of fruits and vegetables. A removable "multibox" with a silicone lid and air-tight seal is included to help store small food items that might have particularly strong odors. The control panel includes a "refrigerator boost" option to reach colder temperatures when loading groceries or first starting the unit up. This unit is equipped with adaptive intelligent technology that utilizes innovative sensors to automatically adjust to your habits. By recording common times of the door being opened and closed or patterns of when you load your groceries, the unit learns to anticipate this action and self-adjusts the temperature to handle these changes.

The lower frost-free freezer compartment is equipped with two slide-out drawers with plastic fronts to better protect stored items from ambient air when the door is opened. A "freezer boost" function on the control panel helps the unit to reach its coldest temperature faster and a factory installed icemaker keeps a steady supply of ice cubes on hand.

With its unique footprint and attractive style, the FFBF181ESBIIM brings a luxury look to kitchens with space limitations.

NOTE: This unit replaces the FFBF181SSBIIM.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
