18" Wide Built-In Beverage Center

SKU: CL181WBVCSS
Seamless stainless steel door trim brings true elegance under the counter
Estimated Time to Ship:

3 to 5 days

Cabinet:

*Additional features may vary

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
34.0" H x 17.63" W x 23.5" D
(86cm H x 45cm W x 60cm D)

Overview
Height of Cabinet 34.0" (86 cm)
Width 17.63" (45 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 39.63" (101 cm)
Capacity 2.9 cu.ft. (82 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 255.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 90.0 lbs. (41 kg)
Shipping Weight 126.5 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101055275
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.85oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes
Temperature Range 36 to 43ºF
Dimensions
Interior Height 23.0" (58 cm)
Interior Width 12.25" (31 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 12.25" (31 cm)
Compressor Step Depth 5.25" (13 cm)

Door
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

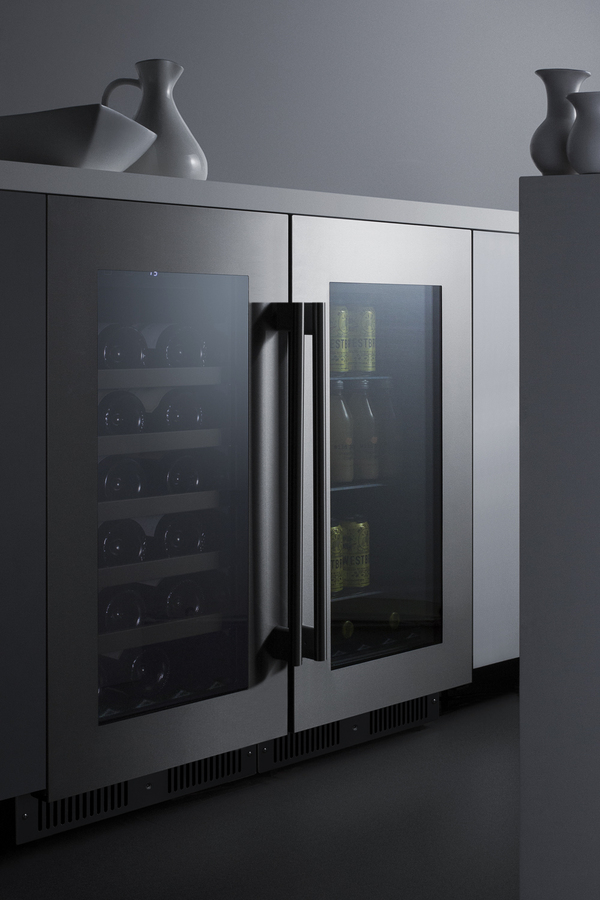

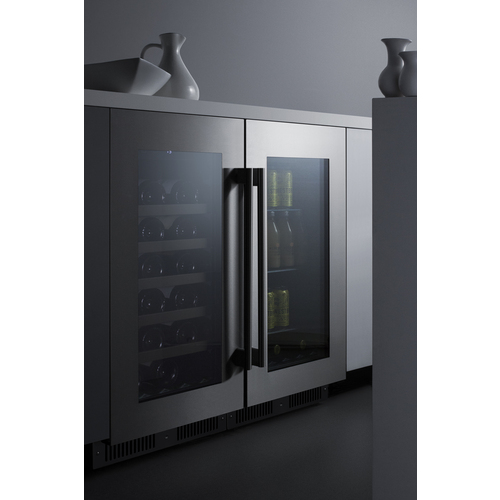

Built-in capable

Make the best use of space by installing your appliance under the counter

Double pane tempered glass door

Heat-safe glass ensures your items are stored safely

Seamless stainless steel trim

One-piece stainless steel door frame offers a luxurious look with no exposed seams or holes

Stainless steel exterior

Cabinet is fully wrapped in stainless steel for lasting durability

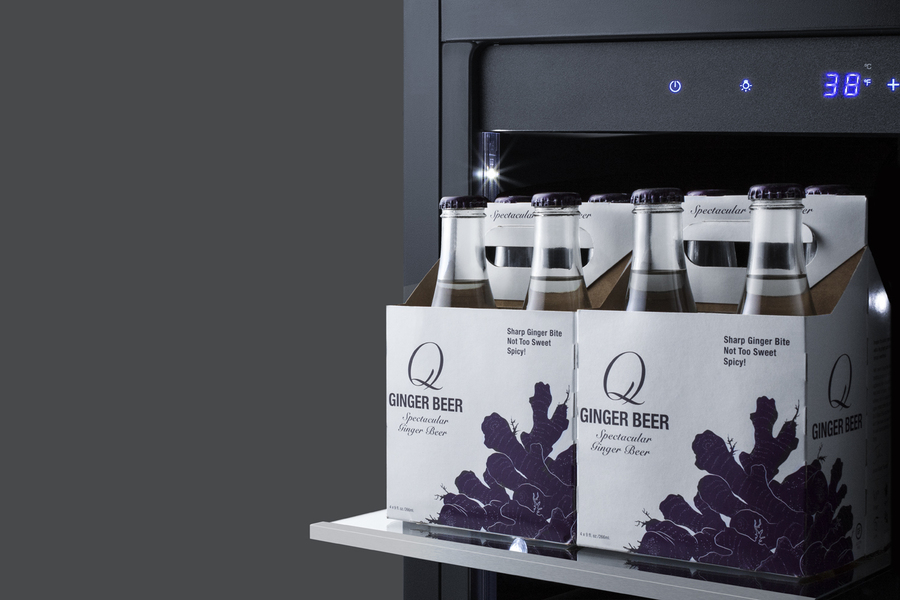

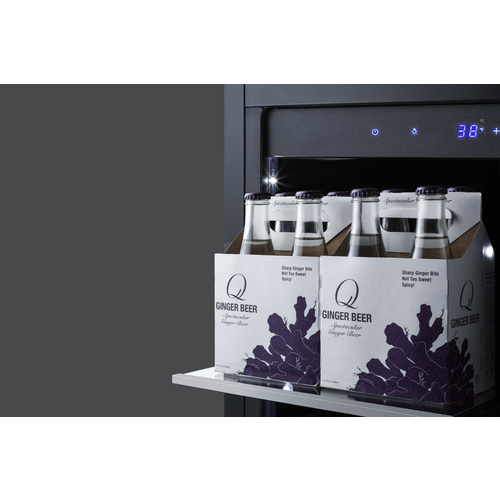

Digital thermostat

Electronic controls for precise temperature management

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

Adjustable glass shelves

Spill-proof glass shelves make it easy to store and display bottles and cans

Bottle slots

Floor is specially slotted to store wine and other bottles safely in place

White LED lighting

Unique white lighting located inside the walls offers elegant illumination for the jet black interior

Professional handle

Vertically mounted handle in brushed stainless steel

Reversible door

User-reversible door swing allows for more flexibility in placing the unit

Stainless steel kickplate

Completes the professional look down to the toe kick

Sabbath Mode

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature alarm

Audibly alerts if the interior temperature is too warm

Open door alarm

Audible alarm will sound if the door is left ajar for over 60 seconds

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

Automatic defrost

Reduced maintenance and steady temperature performance

Sealed back

Space saving design with easier cleanability

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished cabinet

Allows the unit to be used freestanding

Integrated hinge

Top hinge adds no additional height or width when the door is opened

Commercially approved

ETL-S listed to NSF-7 standards

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.

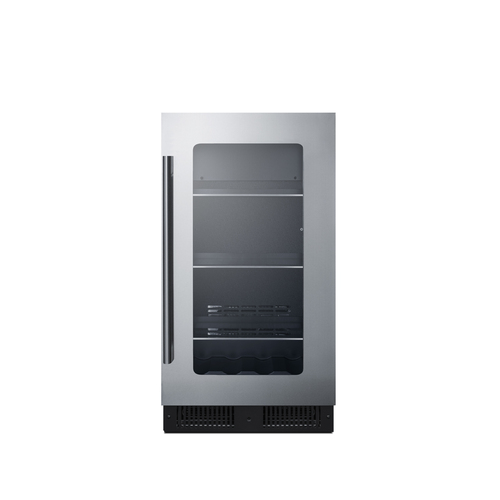

The CL181WBVCSS is an 18" wide beverage center. The front breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This unit features a stainless steel wrapped cabinet. The seamless stainless steel door trim blends right into the softly tinted double pane tempered glass, with a professional stainless steel handle and designer kickplate completing the stunning look. Inside, white LED lighting located on the side walls complements the black interior for an attractive presentation.

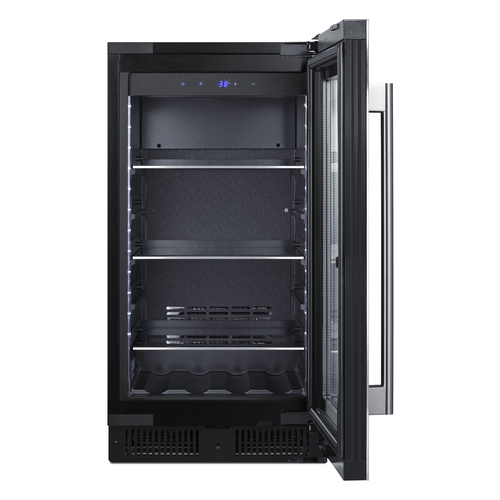

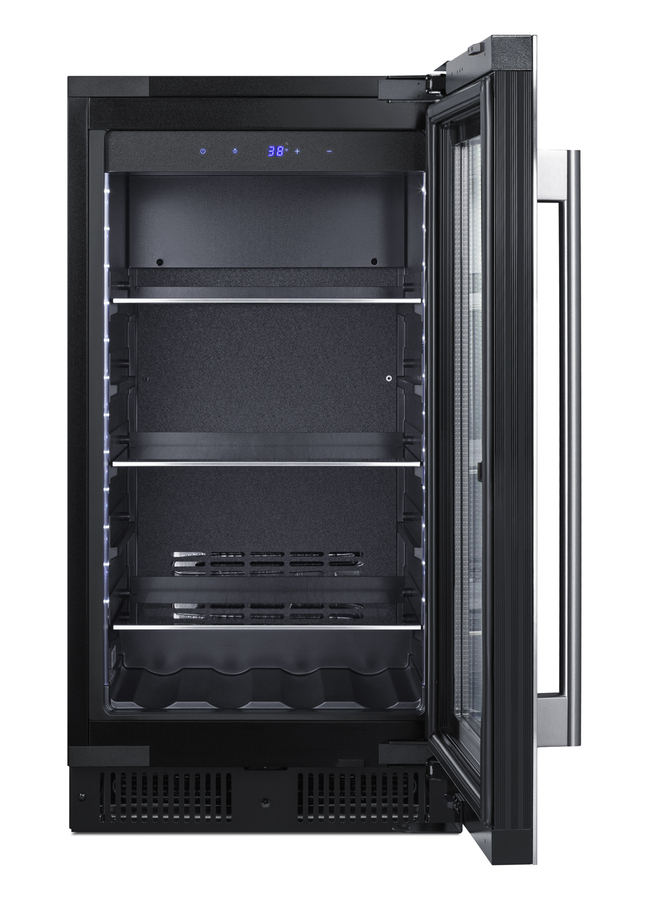

The CL181WBVCSS includes three adjustable glass shelves for spill-proof storage. The floor is specially slotted to hold wine bottles in place. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature.

Uniquely styled and fully featured, the CL181WBVCSS brings true luxury to small kitchen spaces.

Download
BROCHURE w/ DRAWINGS
CL181WBVCSS.pdf
Download
TECHNICAL DRAWING (.dwg)
CL181WBV_BEVERAGE_REF__A-C_2000_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
