FF7LCSS
- SUMMIT's "hidden" evaporator maximizes space and heightens performance
- Ideal 24" compact footprint offers large 5.5 c.f. capacity
- Flexible design for built-in or free-standing use
- Stainless steel door brings modern style to any setting
- Factory-installed lock provides security you can count on
- Commercially approved for use in foodservice establishments

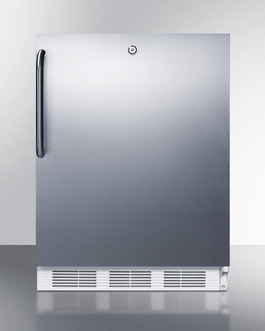

SUMMIT's commercially approved FF7 is one of the industry’s most trusted counter height all-refrigerators, with dimensions that fit and construction that lasts.
With a width just under 24 inches, the FF7LCSS is perfect for any tight space, with a 32 inch height to meet ADA guidelines. Designed for built-in or freestanding use, this unit is fully wrapped in stainless steel for a luxurious look with maximum durability. A curved towel bar handle in brushed stainless steel adds modern style with an easy-to-grab fit. A front-mounted lock is included.
Inside, the FF7LCSS uses automatic defrost to lower user maintenance. SUMMIT’s unique “hidden” evaporator is set behind the rear wall, creating a seamless interior that’s easy to clean with no tricky crevices to trap food.
The generous storage capacity and flat door liner can accommodate large trays with dimensions of 19 1/2" x 16." Adjustable shelves are included. A rocker switch to turn the interior light on and off is located just behind the adjustable thermostat for additional convenience.
User-friendly and energy efficient, the FF7LCSS fits well in any commercial, home, or medical setting. Match it with any frost-free SCFF55 freezer for a complete side-by-side set.
| Commercially approved | ETL-S Approved to ANSI-NSF Standard 7 |
| Slim undercounter dimensions | Less than 24 inches wide to fit tight spaces |
| Built-in capability | Make the best use of space by installing your refrigerator under the counter and flush with other cabinets |
| Fully finished cabinet | Allows the refrigerator to be used freestanding |
| Complete stainless steel exterior | Durable construction with modern style |
| Professional towel bar handle | A curved stainless steel handle provides more room for a comfortable grip |
| Automatic defrost operation | Simplify appliance care by letting your refrigerator defrost itself |
| Front-mounted lock | Keep contents secure with a key lock on the door |
| Adjustable shelves | Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up |
| Hidden evaporator | SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or your food |
| One piece seamless interior liner | Enjoy easy clean-up with a one piece liner that won't hold a mess in hidden crevices |
| Flat door liner | Lets the refrigerator accept deeper trays |
| Deep shelf space | Interior accommodates large trays up to 19 1/2" x 15 1/2" |
| Adjustable thermostat | Control your food's temperature with ease and accuracy |
| Interior light on rocker switch | Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat |
| Matchable to other SUMMIT units | Pair with any SCFF55 freezer for a perfectly matched set |
| 100% CFC free | Environmentally friendly design without ozone-damaging chemicals |
| Height | 33.25" |
| Width | 23.75" |
| Depth | 23.5" |
| Capacity | 5.5 cu.ft. |
| Interior Height 1 | 27.75" |
| Interior Width 1 | 20.0" |
| Interior Depth 1 | 17.5" |
| Comp Step Height | 7.0" |
| Comp Step Width | 20.0" |
| Comp Step Depth | 6.0" |
| Height Adjustable | Yes |
| Shipping Weight | 143.0 lbs. |
| Canadian Electrical Safety | ULC |
| Amps | 1.3 |
| Energy Usage/Year | 405.0 kWh/year |
| US Electrical Safety | UL |
| Reversible | Factory Reversible |
| Door Swing | RHD |
| Shelf Quantity | 3 |
| Adjustable Shelf | Yes |
| Shelf Type | Wire |
| Defrost Type | Automatic |
| Reversible | Factory Reversible |
| Height to Hinge Cap | 34.75" |
| Depth with door at 90° | 45.5" |
| Condensor Location | Rear of Unit |
| Thermostat Type | Dial |
| Light | Yes |
| Fan Type | Exterior |
| High Side PSI | 285.0 |
| Freon Type | R134a |
| Level Legs Quantity | 4 |
| Low Side PSI | 70.0 |
| Freon Oz | 1.8 |
| Compressor Warranty | 5 Years |
| Parts/Labor Warranty | 1 Year |
| Sanitation | ETL-S |
| Technical Drawings |
|---|
| FF7LCSS_ASSY.pdf |
| FF7LCSS_FF7LBLCSSFEFRIGERATOR.dwg |
| Brochure |
|---|
| FF7LCSS.pdf |
| Other |
|---|
| Summit_24in_manual |
| UPC Code: | 761101004419 |
|---|---|
| UPC Code LHD: | 761101004426 |
