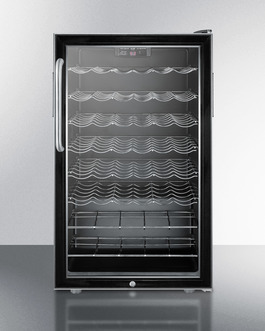

20" Wide Built-In Wine Cellar

SKU: SWC525LCSS
Uniquely sized at just under 20" wide
DISCONTINUED- REPLACED BY SWC1840BCSS
33.25" H x 19.38" W x 22.25" D
(84cm H x 49cm W x 57cm D)

Overview
Height of Cabinet 33.25" (84 cm)
Width 19.38" (49 cm)
Depth 22.25" (57 cm)
Capacity 4.5 cu.ft. (127 L)
Bottles 40 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Shipping Weight 68.0 lbs. (31 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101038155
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Shelf Type Scalloped
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R134a
Refrigerant Amount 1.59 oz.
High Side PSI 218.0
Low Side PSI 105.0
Level Legs 2
Wheels 2

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings

Slim 20" width

Full 4.5 cu.ft. capacity inside conveniently slim footprint

Built-in capable

Make the best use of space by installing your appliance under the counter

Fully finished cabinet

Allows the unit to be used freestanding

Stainless steel wrapped cabinet

Durable 304 grade wrapping

Professional towel bar handle

A curved stainless steel handle provides generous room for a comfortable grip

Factory installed lock

Keyed lock for secure interior

Automatic defrost

Reduced maintenance with auto defrost system

Digital thermostat

Electronic controls for precise temperature management, with indicator lights for red wine, white wine, and champagne temperatures

Scalloped shelves

Six adjustable chrome shelves are specially designed to hold wine bottles

Interior light

Turn the light on and off with a convenient rocker switch

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

SUMMIT’s SWC525LBI series features 20” wide glass door wine cellars designed for built-in use under counters.

The SWC525LCSS wine cellar can be used built-in or freestanding in any 20” space. It has a glass door with a front lock and pro towel bar handle, with the exterior cabinet fully wrapped in 304 grade stainless steel. The auto defrost interior features adjustable scalloped shelves to hold wine bottles and a digital thermostat that allows easy management of your reds, whites, and champagnes.

With a slim-fitting footprint and an elegant design, the SWC525LCSS is ideal for any setting looking for an affordable way to store and display a wine collection. For this model in a lower ADA compliant height, see the SWC525LCSSADA.

NOTE: This unit has a black door frame.

Download
BROCHURE
SWC525LCSS.pdf
Download
USE & CARE
SWC525LBIManual.pdf
Download
MSDS INFORMATION
R134a_MSDS_T.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
