SCR7012D
SCR7012D
angle
full
SHARE THIS PRODUCT
Pinterest E-mail a Friend Print

SPECIFICATIONS

Overview
Height 34.13"
Width 35.5"
Depth 19.63"
Depth with Handle 21.13"
Depth with door at 90° 36.0"
Capacity 7.4 cu.ft.
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Sanitation ETL-S
Amps 2.63
Voltage/Frequency 115 V AC/60 Hz
Weight 138.0 lbs.
Shipping Weight 200.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing French
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 4.64
High Side PSI 322.0
Low Side PSI 97.0
Interior Light Yes
Dimensions
Interior Height 28.25"
Interior Width 32.5"
Interior Depth 15.0"
Compressor Step Height 7.5"
Compressor Step Width 32.5"
Compressor Step Depth 7.25"

AVAILABLE UPGRADES

Lock
KEY
Extra keys available for purchase
Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Door
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models

SCR7012D

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Delivery
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
Commercial approved
This unit meets NSF standards and is designed for commercial use. It complies with the U.S. Department of Energy (DOE) standards for commercial energy usage, but may not meet DOE household standards. For information on its commercial sanitation listing, see Specifications.

34.13" H x 35.5" W x 19.63" D

OVERVIEW

WHERE TO BUY

Invalid Format

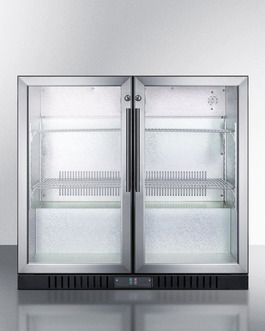

SUMMIT's SCR7012D is a commercial beverage merchandiser designed to maximize impulse sales.

This commercially approved all-refrigerator utilizes automatic defrost for low maintenance. Adjustable chrome shelves let you customize the hammered aluminum interior to accommodate different sized items, with full interior lighting to ensure a proper product display.

Two solid glass doors are trimmed with stainless steel and equipped with front-mounted locks for added security. Both are self-closing to help ensure stored items aren't accidentally left exposed to room temperature. Stainless steel handles complete the professional look. Set the SCR7012D above or below the counter (with proper ventilation) as a self-service refrigerator for maximum impulse sales.

FEATURES

Automatic defrost
Reduced maintenance with auto defrost system
Commercially approved
ETL-S Approved to ANSI-NSF Standard 7 and CalCode Compliant
Two glass doors
Solid glass doors provide a clear view of interior contents
Fully finished textured black cabinet
Allows the unit to be used freestanding
Two factory installed locks
Protect contents in bothsections with a key lock on each door
Adjustable shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Adjustable thermostat
Manage the interior temperature with ease and accuracy
Interior light
Illuminates the interior for a an attractive view of stored contents
Stainless steel trim on doors
Enhance what's inside with a touch of stainless steel
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

Download BROCHURE w/ DRAWINGS
SCR7012D.pdf
Download TECHNICAL DRAWING (.dwg)
SCR7012DBEVERAGECENTERA-C20...
