12" Wide Beverage Center

SKU: SCR1225
Unique fit for 12" wide spaces
DISCONTINUED- REPLACED BY SCR1225B
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
34.38" H x 11.88" W x 22.38" D
(87cm H x 30cm W x 57cm D)

Overview
Height of Cabinet 34.38" (87 cm)
Width 11.88" (30 cm)
Depth 22.38" (57 cm)
Depth with Handle 24.13" (61 cm)
Depth with door at 90° 33.0" (84 cm)
Capacity 2.2 cu.ft. (62 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 380.0kWh/year
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 66.0 lbs. (30 kg)
Shipping Weight 70.0 lbs. (32 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101030319
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 6
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 2.11oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 9.13" (23 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 9.13" (23 cm)
Compressor Step Depth 4.5" (11 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings

Built-in capable

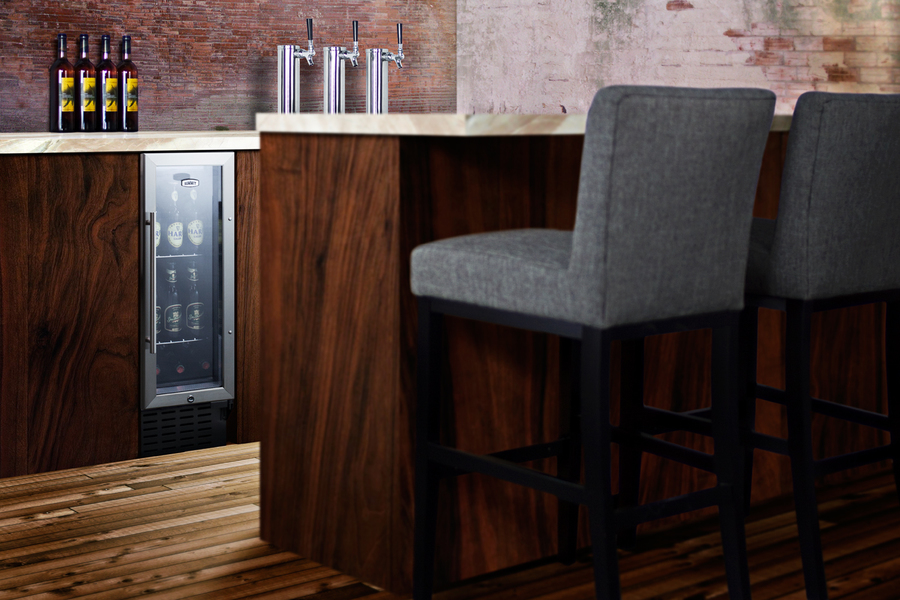

Make the best use of space by installing your appliance under the counter

Fully finished black cabinet

Allows the unit to be used freestanding

Glass door with stainless steel trim

Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock

Keyed security on the door

Digital thermostat

Electronic controls for precise temperature management.

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Gentle illumination with an on/off switch

Automatic defrost

Reduced maintenance with the convenience of auto defrost

Adjustable chrome shelves

Slide-out shelves offer attractive and convenient storage for beverages

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Professional handle

Stainless steel look for added elegance

Flush back

Space saving design with easier cleanability

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Commercially approved

Meets UL Commercial Standard 471 and is ETL-S listed to NSF-7 commercial standards

SUMMIT's collection of built-in beverage centers provides the perfect solution for storing drinks under the counter.

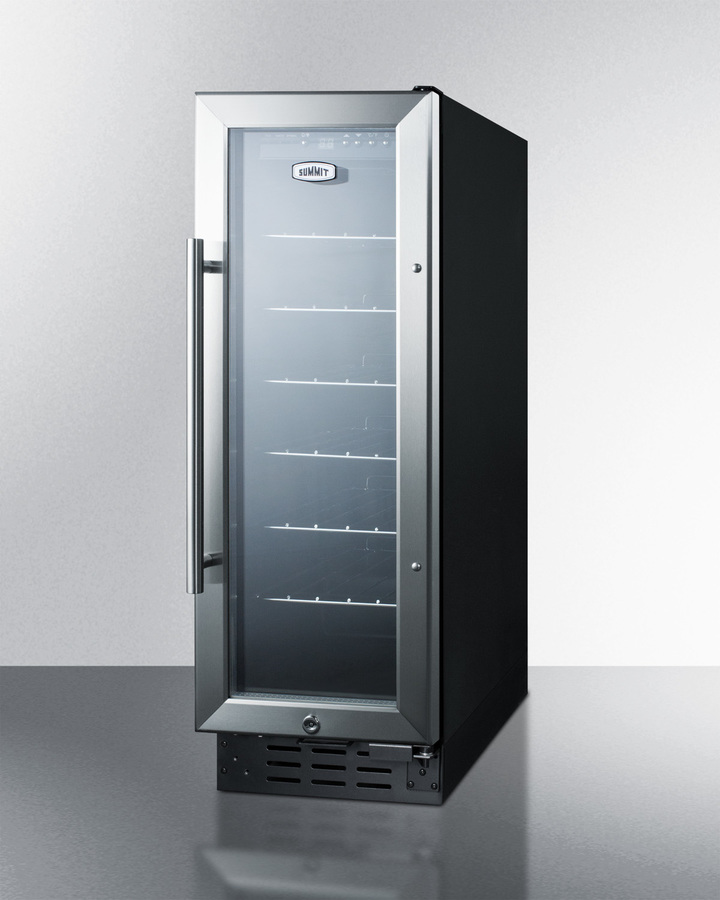

At just 12" wide, SUMMIT SCR1225 is perfectly sized for small spaces. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The reversible glass door features stainless steel trim and a professional handle, with a factory installed lock to prevent unsupervised access.

Inside, the SCR1225 includes six slide-out chrome shelves and a floor specially slotted to hold wine bottles. Recessed LED lighting offers an attractive and efficient display. The digital thermostat allows easy temperature management in Celsius or Fahrenheit.

With its slim fit and user-friendly features, the SCR1225 is perfect for a 12" cutout. This model is ETL-S listed to NSF-7 commercial standards and meets UL Commercial Standard 471. For a matching wine cellar, see the SWC1224.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
