SPECIFICATIONS

Overview
Height 51.38"
Width 23.63"
Depth 25.5"
Capacity 6.4 cu.ft.
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 152.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Beer Dispenser
Door Swing RHD
Reversible No
Shelf Type Wire
Thermostat Type Dial
Refrigerant R134a
Refrigerant Amount 2.1 oz.
High Side PSI 280.0
Low Side PSI 88.0
Inter Height 29.0"
Interior Width 21.25"
Interior Depth 18.75"
Wheel Qty 4

SBC490OSSSTB7

Commercial approved
This unit meets NSF standards and is designed for commercial use. It complies with the U.S. Department of Energy (DOE) standards for commercial energy usage, but may not meet DOE household standards. For information on its commercial sanitation listing, see Specifications.

DISCONTINUED

51.38" H x 23.63" W x 25.5" D

OVERVIEW

WHERE TO BUY

Invalid Format

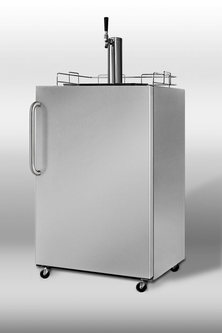

SUMMIT's full-sized beer dispenser brings the pleasure of a cold draft to the outdoors in a commercially approved unit with a weatherproof design.

Fully equipped to stand up to the elements, the SBC490OSSSTB7 meets and exceeds U.L. requirements for safe outdoor operation. The exterior is completely wrapped in non-corrodible 304 grade stainless steel, with the back fully sealed to protect all electrical components. An integrated Ground Fault Circuit Interrupter (GFCI) prevents circuit breaks from damaging the unit or causing electric shocks. Our 12 inch long towel bar handle offers a comfortable grip while adding a durable touch of elegance. We also offer an alternative "HV" handle with a slim 14mm diameter to match many popular cabinet styles.

The SBC490OSSSTB7 includes all the tap accessories you need to serve beer from a half, quarter, or mini keg. Automatic defrost saves time and maintenance and an enhanced cooling system ensures optimum performance in busy commercial venues.

Designed primarily for freestanding use, this undercounter beer dispenser can be installed as a built-in unit but requires 1 1/2 inch of space between the rear of the unit and wall and a 1/2 inch of space between the unit sides and cabinetry.

FEATURES

U.L. Approved for outdoor use
Weatherproof design to stand up to the elements
Commercially approved
ETL-S Listed to NSF-18
All 304 grade stainless steel exterior
Non-corrodible stainless steel lasts in any season
Full-sized beer dispenser
Interior accommodates half, quarter, or mini (pony) kegs
KIT 490 included
Complete tap system with 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, connection hardware, and cleaning kit
Professional towel bar handle
A curved handle in brushed stainless steel provides generous room for a comfortable grip
Automatic defrost
Reduced user maintenance with auto defrost operation
Adjustable thermostat
Manage the temperature with ease and accuracy
Ground Fault Circuit Interrupter
Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
Sealed aluminum back
All electrical components are protected from the elements
Built-in capable
Make the best use of space by installing your beer dispenser under the counter and flush with other cabinets; requires 1/2" of space between sides and cabinets and 1 1/2" space between unit rear and wall
Casters included (ship unassembled)
Keep your beer on the move with sturdy casters that let you wheel the beer dispenser with ease
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
