SBC490BISSHVTWIN
SBC490BISSHVTWIN
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height 34.5"
Width 23.63"
Depth 24.88"
Depth with Handle 26.5"
Depth with door at 90° 47.0"
Capacity 6.4 cu.ft.
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 152.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Beer Dispenser
Door Swing RHD
Reversible No
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Fan Type Exterior
Refrigerant R134a
Refrigerant Amount 2.1 oz.
High Side PSI 280.0
Low Side PSI 88.0
Inter Height 29.0"
Interior Width 21.25"
Interior Depth 18.75"
Level Legs Qty 4

SBC490BISSHVTWIN

Commercial unit
This unit is designed for commercial use. It meets the U.S. Department of Energy (DOE) commercial energy standards but may not meet DOE residential standards.

DISCONTINUED- REPLACED BY SBC677BITWIN

34.5" H x 23.63" W x 24.88" D

OVERVIEW

WHERE TO BUY

Invalid Format

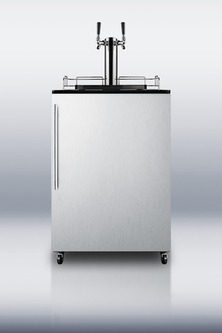

SUMMIT's SBC490BI Series features built-in undercounter commercial beer dispensers designed to meet your style and service needs, with automatic defrost operation for user-friendly convenience.

The SBC490BISSHVTWIN offers users the chance to serve two different types of beers from slim quarter kegs, with a tap system complete with a CO2 tank and all the accessories necessary for the smoothest pour. The interior can also accept half and mini kegs, allowing you to fill the unit with just the right amount for every service. Automatic defrost minimizes user maintenance, while the enhanced cooling system ensures an optimum performance in busy commercial venues.

Designed primarily for built-in use, the SBC490BISSHVTWIN can be installed under standard commercial counters. It can also be used freestanding and ships with sturdy casters to be installed by users who want to make the unit mobile. The jet black cabinet is fitted with fully wrapped stainless steel door. A sleek stainless steel handle completes the look.

This unit is built to commercial standards and meets UL Commercial Standard 471. For an NSF-listed version of this unit, see the SBC490BI7SSHVTWIN.

FEATURES

Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Fully finished black cabinet
Allows the unit to be used freestanding
Stainless steel door
Modern elegance with durable construction
Professional stainless steel handle
Thin 14mm diameter on stainless steel handle, mounted vertically for a sleek look
KIT 490 included
Complete tap system with 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, connection hardware, and cleaning kit
Dual tap system
Twin taps let you serve two different types of beer from two slim quarter kegs
Automatic defrost
Reduced user maintenance with auto defrost operation
Adjustable thermostat
Manage the temperature with ease and accuracy
Casters included (ship unassembled)
To make the unit portable, install this sturdy set of casters to the base of the unit
Top guard rail (ships unassembled)
If using the beer dispenser freestanding, install this silver rail on top to catch spills and neaten service
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
