FS408BL7CSSADA
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height 32.0"
Height to Hinge Cap 32.5"
Width 19.25"
Depth 21.38"
Depth with door at 90° 39.5"
Capacity 2.8 cu.ft.
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 298.0kWh/year
Amps 1.6
Voltage/Frequency 115 V AC/60 Hz
Weight 72.0 lbs.
Shipping Weight 95.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 26.38"
Interior Width 14.0"
Interior Depth 16.75"
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 3.0 oz.
High Side PSI 210.0
Low Side PSI 105.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 4

AVAILABLE UPGRADES

Exterior
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option

FS408BL7CSSADA Matching refrigerator

Commercial approved
This unit meets NSF standards and is designed for commercial use. It complies with the U.S. Department of Energy (DOE) standards for commercial energy usage, but may not meet DOE household standards. For information on its commercial sanitation listing, see Specifications.

32" H x 19.25" W x 21.38" D

OVERVIEW

WHERE TO BUY

Invalid Format

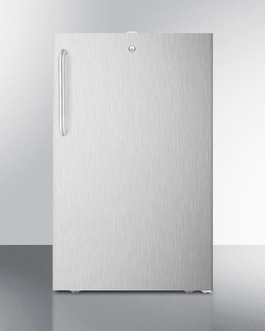

AccuCold by Summit Appliance FS408BLBI7ADA Series offers a quality selection of 20" wide commercial all-freezers for built-in use under ADA compliant counters.

The ETL-S listed FS408BL7CSSADA is a manual defrost all-freezer with 2.8 cu.ft. capacity. Four pull-out drawers with clear fronts offer convenient storage solutions. The adjustable thermostat is located in the rear of the model and a hospital grade (green dot) cord offers additional safety in high traffic areas. This model has a 304 grade stainless steel cabinet and door, with a curved towel bar handle to complete the professional look. A top-mounted lock adds convenient security.

Sized at 32" high and just under 20" wide, the FS408BL7CSSADA is designed to fit under lower ADA compliant counters. This unit can be used built-in or freestanding and can be paired with our auto defrost FF521BL7CSSADA all-refrigerator.

FEATURES

ADA compliant
32" high to fit under lower ADA compliant counters
Commercially listed
ETL-S listed to NSF standards for commercial use
Built-in capable
Make the best use of space by installing your appliance under the counter
Slim 20" width
2.8 capacity inside a slim footprint
Stainless steel wrapped exterior
304 grade stainless steel on the cabinet and door
Professional towel bar handle
A curved stainless steel handle provides generous room for a comfortable grip
Factory installed lock
Top-mounted for convenient security
Fully finished cabinet
Allows the unit to be used freestanding
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Manual defrost
Efficient performance with reliable temperature stability
-20º capable
Low temperature capability ideal for certain sensitive items
Pull-out drawers
Four clear baskets for convenient and separated storage
Adjustable thermostat
Rear mounted to prevent accidental adjustments
Flat door liner
Easy to clean, with more depth for storage
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Matching refrigerator available
Pair with FF521BL7CSSADA for a complete ADA compliant set

DOWNLOADS

Energy Guide
