Compact All-Freezer

SKU: FS22LCSSPLUS
DISCONTINUED- REPLACED BY FS24LPLUS2
20.5" H x 17.38" W x 19.0" D
(52cm H x 44cm W x 48cm D)

Overview
Height of Cabinet 20.13" (51 cm)
Height to Hinge Cap 20.5" (52 cm)
Width 17.38" (44 cm)
Depth 19.0" (48 cm)
Capacity 1.42 cu.ft. (40 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety CSA
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 40.0 lbs. (18 kg)
Shipping Weight 55.0 lbs. (25 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 14.63" (37 cm)
Interior Width 12.38" (31 cm)
Interior Depth 14.5" (37 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.67 oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 2
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 12.38" (31 cm)
Compressor Step Depth 6.0" (15 cm)

Exterior
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security

Compact dimensions

Ideal size for use on top of counters

Stainless steel exterior

Fully wrapped in 304 grade stainless steel

Factory installed lock

Keyed security for a secure interior

-20° capable

Low temperature capability ideal for certain sensitive items

Thermometer

Thermometer provides external readout of current and high/low temperatures

Manual defrost

Efficient performance with reliable temperature stability

Removable shelf

Wired shelf provided

Adjustable thermostat

Rear mounted to prevent accidental adjustments

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Accucold by Summit Appliance’s PLUS Series refrigerators and freezers are designed to provide greater temperature uniformity for general purpose and institutional use.

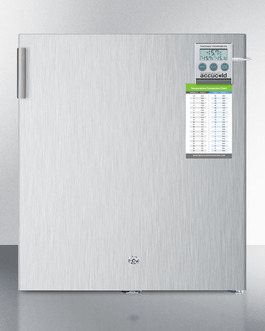

The FS22LCSSPLUS is a compact stainless steel all-freezer designed to fit easily on top of counters. This manual defrost unit can reach temperatures as low as -20ºC, ideal for the storage of many vaccines and laboratory products. The door includes a factory installed lock and a thermometer that provides an external readout of the current and high/low temperatures.

With a compact footprint, the FS22LCSSPLUS is the perfect solution to settings in need of a compact, reliable all-freezer.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
