SPECIFICATIONS

Overview
Height 20.13"
Height to Hinge Cap 20.5"
Width 17.38"
Depth 19.0"
Capacity 1.42 cu.ft.
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety CSA
Sanitation CSA-S
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 40.0 lbs.
Shipping Weight 55.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 14.5"
Interior Width 12.38"
Interior Depth 14.5"
Shelf Type Wire
Shelf Qty 1
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 1.67
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 2
Compressor Step Height 7.0"
Compressor Step Width 12.38"
Compressor Step Depth 6.0"

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
KEY
Extra keys available for purchase
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface

FS22L7CSSMEDDT Matching refrigerator

20.13" H x 17.38" W x 19" D

OVERVIEW

WHERE TO BUY

Invalid Format
AccuCold by Summit Appliance offers MEDDT series all-freezers for stabilized temperature performance to be used in medical, scientific, pharmaceutical, and laboratory institutions.

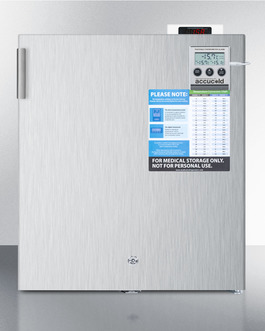

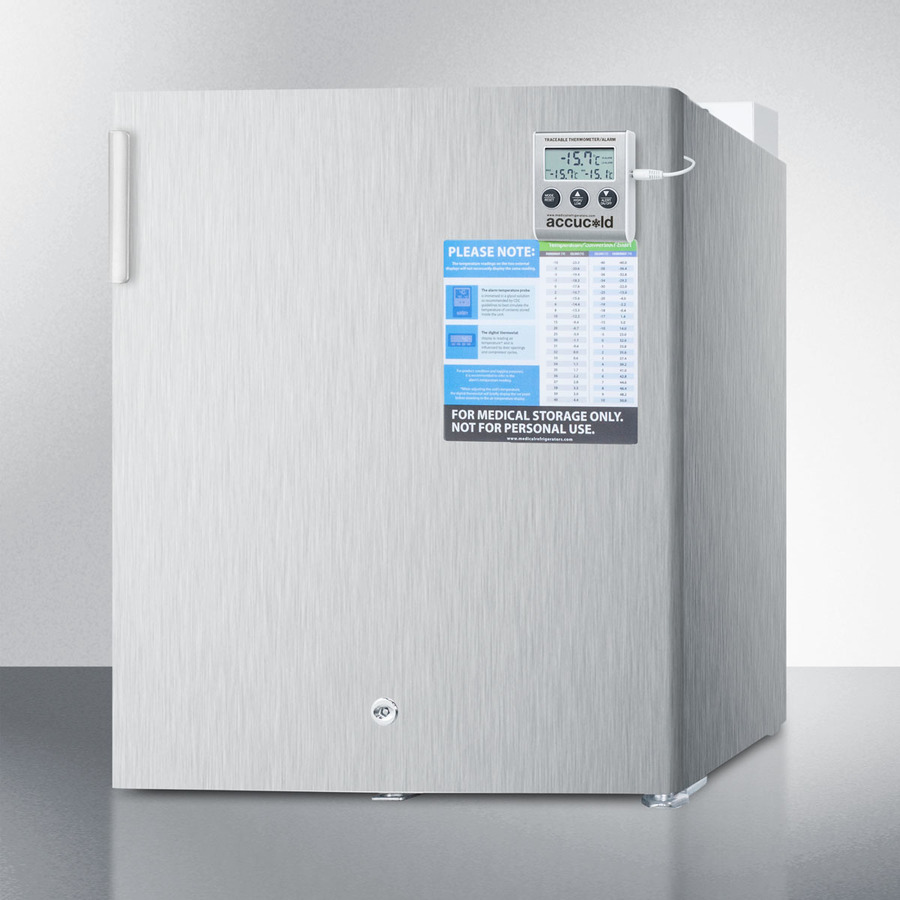

The FS22L7CSSMEDDT is a commercially listed compact stainless steel all-freezer for countertop use. The door includes a front lock and high temperature warning alarm that also displays the current and high/low temperatures. A digital thermostat offers more control in temperature management. This manual defrost freezer can hold temperatures as low as -20ºC, ideal for sensitive laboratory material or certain vaccines. Additional features include a removable shelf and a hospital grade cord with 'green dot' plug.

FEATURES

Commercially listed
CSA-S listed to NSF-7 standards
Compact dimensions
Ideal size for use on top of counters
Stainless steel exterior
Fully wrapped in 304 grade stainless steel
-20° capable
Low temperature capability ideal for certain sensitive items
Manual defrost
Efficient performance with reliable temperature stability
Digital thermostat
Electronic controls for more precise temperature management
Factory installed lock
Keyed lock for secure interior
High temperature alarm
Warns of temperature fluctuations and includes an external temperature readout on the door
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Removable shelf
Wired shelf provided
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
