FF7LBLSSHV
FF7LBLSSHV
angle
open
full
SHARE THIS PRODUCT
Pinterest E-mail a Friend Print

SPECIFICATIONS

Overview
Height 33.5"
Width 23.63"
Depth 23.5"
Depth with Handle 25.13"
Depth with door at 90° 46.0"
Capacity 5.5 cu.ft.
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 118.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 27.75"
Interior Width 20.0"
Interior Depth 17.5"
Compressor Step Height 7.0"
Compressor Step Width 20.0"
Compressor Step Depth 6.0"

AVAILABLE UPGRADES

Lock
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security
KEY
Extra keys available for purchase
Interior
PHDC Access Port
Factory installed probe hole and dry contact for monitoring equipment
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Legs
6" high leveling legs
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK Kickplate
Add a stainless steel kickplate
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
CAS6 6" Casters
6" high NSF listed casters
CAS3 3" Casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Agion Door
Treat the door with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface

FF7LBLSSHV

33.5" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
AccuCold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7 Series features high performing, perfectly sized all-refrigerators designed for freestanding use.

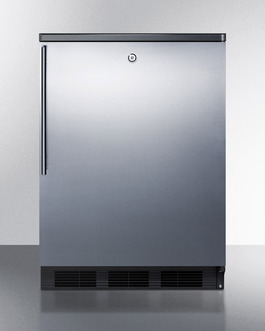

The FF7LBLSSHV is a counter height all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a black cabinet and stainless steel wrapped door with a factory installed lock. A sleek handle with a thin 14mm diameter completes the professional look.

Inside, the FF7LBLSSHV utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7LBLSSHV is ETL-S listed to NSF-7 standards for use in commercial establishments. For a built-in version of this unit, see the FF7LBLBISSHV. For more finish options, browse the entire FF7 Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Slim counter height dimensions
Less than 24 inches wide with a full 5.5 c.f. capacity
Fully finished black cabinet
Allows the refrigerator to be used freestanding
Factory installed lock
Keyed lock for a secure interior
Stainless steel door
Durable design with lasting elegance
Professional stainless steel handle
Thin 14mm diameter on vertical stainless steel handle
Automatic defrost
Reduced user maintenance with automatic defrost
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Adjustable glass shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

Download BROCHURE
FF7LBLSSHV.pdf
