SPECIFICATIONS

Overview
Height 32.0"
Height to Hinge Cap 32.25"
Width 23.63"
Depth 23.5"
Depth with Handle 24.25"
Depth with door at 90° 45.0"
Capacity 5.5 cu.ft.
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs.
Shipping Weight 118.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.8
High Side PSI 285.0
Low Side PSI 88.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 26.25"
Interior Width 21.0"
Interior Depth 17.75"
Compressor Step Height 5.5"
Compressor Step Width 21.0"
Compressor Step Depth 5.5"

AVAILABLE UPGRADES

Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
PHDC Access Port
Factory installed probe hole and dry contact for monitoring equipment
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
Lock
L Lock
Add a single key lock to the door with the L option
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK Kickplate
Add a stainless steel kickplate
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Agion Door
Treat the door with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface

FF7BSSHHADA

Estar commercial
Commercial approved
This unit meets NSF standards and is designed for commercial use. It complies with the U.S. Department of Energy (DOE) standards for commercial energy usage, but may not meet DOE household standards. For information on its commercial sanitation listing, see Specifications.

32" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
AccuCold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7ADA Series features 24" wide all-refrigerators sized for freestanding use in ADA compliant settings.

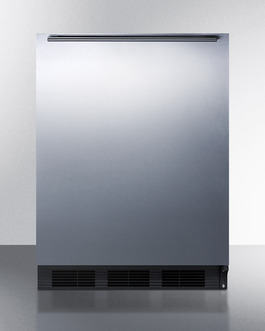

The FF7BSSHHADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a black cabinet and user-reversible stainless steel wrapped door. A thin handle with a 14mm diameter is mounted horizontally for a sleek, modern look.

Inside, the FF7BSSHHADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7BSSHHADA is ETL-S listed to NSF-7 standards for use in commercial establishments and is ENERGY STAR certified as a commercial refrigerator. For a built-in version of this unit, see the FF7BBISSHHADA. For more finish options, browse the entire FF7ADA Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

ENERGY STAR certified commercial performance
Meets ENERGY STAR standards as a commercial refrigerator
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
ADA compliant
32" height for use in settings complying with ADA guidelines for lower counter height
Slim counter height dimensions
Less than 24 inches wide with a full 5.5 c.f. capacity
Fully finished black cabinet
Allows the refrigerator to be used freestanding
Stainless steel door
Durable design with lasting elegance
Professional horizontal handle
Thin 14mm diameter on stainless steel handle set horizontally across the door
Automatic defrost
Reduced user maintenance with automatic defrost
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Adjustable glass shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Reversible door
User-reversible door swing for added flexibility
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

Download BROCHURE
FF7BSSHHADA.pdf
Download MSDS INFORMATION
R134a_safety_list.pdf
