SPECIFICATIONS

Overview
Height 33.25"
Height to Hinge Cap 33.25"
Width 23.63"
Depth 23.5"
Depth with Handle 24.63"
Depth with door at 90° 45.13"
Capacity 5.5 cu.ft.
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 110.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.8
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 27.75"
Interior Width 20.0"
Interior Depth 17.5"
Compressor Step Height 7.0"
Compressor Step Width 20.0"
Compressor Step Depth 6.0"

AVAILABLE UPGRADES

Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Legs
6" high leveling legs
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK Kickplate
Add a stainless steel kickplate
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
CAS6 6" Casters
6" high NSF listed casters
CAS3 3" Casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Lock
L Lock
Add a single key lock to the door with the L option
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
PHDC Access Port
Factory installed probe hole and dry contact for monitoring equipment
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

FF7BFR

Commercial approved
This unit meets NSF standards and is designed for commercial use. It complies with the U.S. Department of Energy (DOE) standards for commercial energy usage, but may not meet DOE household standards. For information on its commercial sanitation listing, see Specifications.

DISCONTINUED- REPLACED BY FF7BBIFR

33.25" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
AccuCold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7 Series features high performing, perfectly sized all-refrigerators designed for freestanding use.

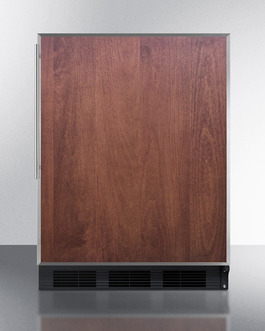

The FF7BFR is a counter height all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a black cabinet. The reversible door includes a two-piece stainless steel handle designed to accept slide-in panel inserts (sized 23" W x 28" H). A stainless steel handle is included.

Inside, the FF7BFR utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7BFR is ETL-S listed to NSF-7 standards for use in commercial establishments. For a built-in version of this unit, see the FF7BBIFR. For more finish options, browse the entire FF7 Series.

FEATURES

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Automatic defrost
Reduced maintenance with auto defrost system
Fully finished cabinet
Allows the refrigerator to be used as a freestanding model
Stainless steel door frame
Slide a panel into the frame to match your unit to other cabinets (panel size: 23" W x 28" H)
Professional stainless steel handle
A 16 inch long stainless steel handle with a sleek 14mm diameter is set vertically on the door
One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat
Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Reversible door
User-reversible door swing for added flexibility
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
