SPECIFICATIONS

Overview
Height 34.13"
Height to Hinge Cap 34.38"
Width 23.63"
Depth 24.25"
Depth with Handle 25.75"
Depth with door at 90° 47.0"
Capacity 5.7 cu.ft.
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs.
Shipping Weight 120.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 3.5
High Side PSI 235.0
Low Side PSI 140.0
Interior Light Yes
Dimensions
Interior Height 27.63"
Interior Width 21.0"
Interior Depth 17.25"

AVAILABLE UPGRADES

Lock
KEY
Extra keys available for purchase
Interior
PHDC Access Port
Factory installed probe hole and dry contact for monitoring equipment
Exterior
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
HUM Humidity Sensor
Humidity sensor with min/max readout
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
CAS3 3" Casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish

FF590SSHHMED

Frost-free operation for optimum cooling

34.13" H x 23.63" W x 24.25" D

OVERVIEW

WHERE TO BUY

Invalid Format
AccuCold by Summit Appliance offers the MED Series all-refrigerators for stabilized temperature performance for use in medical, scientific, pharmaceutical, and laboratory institutions.

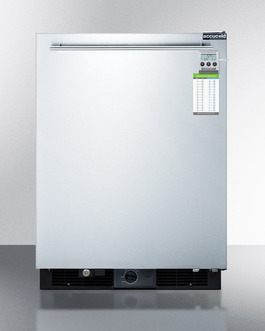

Made in North America, the FF590SSHHMED is a 24" wide all-refrigerator. The front-breathing design allows full built-in installation under counters, while the fully finished cabinet also allows freestanding use. The exterior features a textured black cabinet and wrapped stainless steel door with a professional handle and factory installed lock. A NIST calibrated temperature alarm installed on the door's exterior warns when the unit is out of range and also features a current and high/low temperature readout. This unit includes a hospital grade 'green dot' cord for added safety in high traffic environments and a preinstalled probe hole for users to connect their own monitoring equipment.

Inside, the FF590SSHHMED offers 5.7 cu.ft. of storage. Frost-free operation ensures a low maintenance performance, with fan-forced cooling to keep the temperature stable throughout. Adjustable wire shelves offer flexible storage, while the flat interior door liner conforms with the CDC's recommendations for medical refrigeration design. This unit includes an easily accessible adjustable thermostat in the kickplate.

In addition to the feature package included with this unit, the FF590SSHHMED can be customized with additional options, including a self-closing door and open door alarm. For this same design with a digital thermostat, see the FF590SSHHMEDDT.

FEATURES

Frost-free operation
Eliminates the need to manually defrost the 5.7 cu.ft. interior
Built-in capable
Front-breathing design allows fully recessed installation under counters
Factory installed lock
Keyed lock offers added security
Alarm/thermometer
NIST traceable temperature alarm sounds if the interior goes out of high/low temperature range. Alarm is externally mounted on the door and includes a current and high/low temperature readout
Hospital grade cord
Secure three-pronged cord for added unit safety
Stainless steel door
Professional finish offers lasting durability
Fully finished textured black cabinet
Allows the unit to be used freestanding
Stainless steel handle
Thin (14mm diameter) handle is mounted horizontally for a sleek look
Fan-forced cooling
Interior fan ensures an even temperature throughout the interior
Adjustable wire shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Door storage
3 door racks offer convenient storage
Adjustable thermostat
Front-located thermostat allows easy temperature management
Interior light
Automatically illuminates when the door is opened
Sealed back
Lower maintenance design
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
