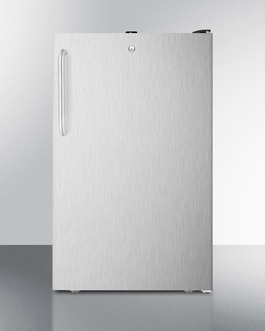

20" Wide All-Refrigerator, ADA Compliant

SKU: FF521BLSSTBADA
Factory installed lock located towards the top of the door for convenient security
DISCONTINUED- REPLACED BY ALR47BSSTB
32.5" H x 19.25" W x 21.38" D
(83cm H x 49cm W x 54cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 67.0 lbs. (30 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101040363
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 6.75" (17 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
Lock
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
Handle
TBC Copper Towel Bar Handle Upgrade
Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

Slim 20" width

Full 4.1 cu.ft. capacity inside conveniently slim footprint

ADA compliant

32" high meets ADA guidelines

Fully finished black cabinet

Allows the unit to be used freestanding

Factory installed lock

Top-mounted for convenient security

Professional towel bar handle

A curved stainless steel handle provides generous room for a comfortable grip

Automatic defrost

Reduced maintenance with auto defrost system

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Crisper drawer

Get the longest life and best taste out of produce by storing greens in a bottom crisper

Flat door liner

Easy to clean, with more depth for storage

Interior light

Turn the light on and off with a convenient rocker switch

Adjustable thermostat

Manage the temperature with ease and accuracy

Matching freezer available

Pair with FS408BLSSTBADA for a complete ADA compliant set

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Accucold by Summit Appliance offers a wide range of ADA compliant all-refrigerators for general purpose storage. The FF521BLADA Series features high performing 20" wide, 32" high all-refrigerators designed for freestanding use.

The FF521BLSSTBADA features a full 4.1 cu.ft. capacity. It has a black cabinet and 304 grade stainless steel wrapped door, with a curved towel bar handle in bushed stainless steel. A factory installed lock is located at the top of the door for convenient security.

Inside, this auto defrost refrigerator includes three adjustable glass shelves. A bottom crisper drawer offers added storage options. Additional features include an adjustable thermostat and a switchable interior light.

At just 20" wide, the ADA compliant FF521BLSSTBADA is ideal for any space in need of quality cooling and can be perfectly matched with our FS408BLSSTBADA all-freezer. This model is designed for freestanding household use. For a built-in version of this model, see the FF521BLBISSTBADA.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
