FF511LBI7MED
SHARE THIS PRODUCT
Pinterest E-mail a Friend Print

SPECIFICATIONS

Overview
Height 33.5"
Height to Hinge Cap 34.0"
Width 19.25"
Depth 21.38"
Depth with Handle 23.0"
Depth with door at 90° 39.5"
Capacity 4.1 cu.ft.
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs.
Shipping Weight 85.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Height Adjustable 1
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 1.75
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5"
Interior Width 15.75"
Interior Depth 18.0"
Compressor Step Height 8.0"
Compressor Step Width 17.0"
Compressor Step Depth 6.75"

AVAILABLE UPGRADES

Lock
KEY
Extra keys available for purchase
Exterior
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac

FF511LBI7MED Matching freezer

33.5" H x 19.25" W x 21.38" D

OVERVIEW

WHERE TO BUY

Invalid Format
AccuCold by Summit Appliance offers the MED Series all-refrigerators, a complete line that comes fully featured for stabilized temperature performance for use in medical, scientific, pharmaceutical, and laboratory institutions.

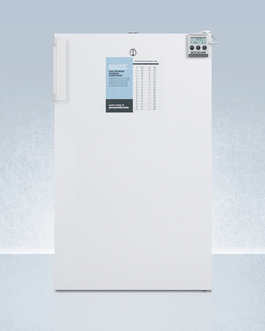

The FF511LBI7MED is a 20” wide all-refrigerator designed for built-in use under counters. It uses automatic defrost operation complete with an internal fan with gel packs for even cold air distribution throughout the 4.1 cu.ft. interior. The door includes a front lock and high temperature warning alarm that also displays the current and high/low temperatures. Additional features include an interior light, adjustable shelves, and hospital grade cord with a ‘green dot’ plug for added safety in high traffic areas.

The FF511LBI7MED can be used built-in or freestanding and paired with the matching FS407LBI7MED all-freezer. This unit is ETL-S listed for commercial use.

FEATURES

Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Commercially listed
ETL-S listed to NSF standards for commercial use
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished white cabinet
Allows the unit to be used freestanding
Factory installed lock
Keyed security on the refrigerator door
Automatic defrost
Reduced maintenance with auto defrost system
Internal fan with gel packs
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
High temperature alarm
Warns of temperature fluctuations and includes an external temperature readout on the door
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Interior light
Turn the light on and off with a convenient rocker switch
Flat door liner
Easy to clean, with more depth for storage
Adjustable thermostat
Manage the temperature with ease and accuracy
Matching freezer available
Pair with FS407LBI7MED for a complete undercounter set
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE w/ DRAWINGS
FF511LBI7MED.pdf
Download TECHNICAL DRAWING (.dwg)
FFS11LBI_FF521BLBIREF.A-C20...
