SPECIFICATIONS

Overview
Height 69.13"
Width 29.38"
Depth 27.88"
Depth with Handle 29.38"
Depth with door at 90° 54.63"
Capacity 15.8 cu.ft.
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Platinum
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 457.0kWh/year
Amps 3.0
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 38.75"
Refrigerator - Interior Width 25.0"
Refrigerator - Interior Depth 22.25"
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 7
Freezer - Interior Height 19.63"
Freezer - Interior Width 24.5"
Freezer - Interior Depth 17.0"
Adjustable Shelves Yes
Gallon Door Storage Yes
Interior Light Yes
Thermostat Type Dial
Fan Type Interior
Freon R134a
Freon Amount 3.5
High Side PSI 335.0
Low Side PSI 140.0
Level Legs 2
Wheels 4

AVAILABLE UPGRADES

Exterior
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

FF1625SSQHVIM

DISCONTINUED- REPLACED BY FF1935PLIM

69.13" H x 29.38" W x 27.88" D

OVERVIEW

WHERE TO BUY

Invalid Format
SUMMIT carries one of the industry's best selections of frost-free refrigerator-freezers, with unique sizes for all kitchens and superior construction for years of reliable service.

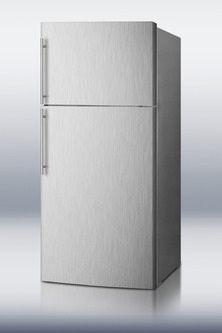

The FF1625SSQHVIM has a platinum cabinet with 304 grade stainless steel wrapped doors for each section. Both include sleek stainless steel handles to complete the professional look.

This frost-free unit features a full 15.8 cu.ft. of storage inside a fully featured interior. Both the refrigerator and freezer sections include door racks and adjustable glass shelves. Two clear crispers give you more options when storing produce, with an extra mini-crisper that can be suspended and adjusted side to side hanging from one of the shelves. A factory installed icemaker offers added user convenience.

With its unique dimensions and thoughtful design, SUMMIT FF1625SSQHVIM makes a luxurious addition to any home kitchen. This model can alternatively be ordered with thicker "TB" handles. You can also customize this refrigerator-freezer by choosing your own custom color for the doors and handles.

FEATURES

Stainless steel wrapped doors
Durable 304 grade wrapping
Professional handles
Thin 14mm diameter on stainless steel handles
Frost-free operation
No-frost convenience for reduced user maintenance
Factory installed icemaker
Forget the plastic trays and enjoy the convenience of ready-made ice in your freezer
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Two clear crispers with humidity control
Get the longest life and best taste out of produce by storing greens in convenient slide drawers
Hanging deli crisper
Mini-drawer suspends from a refrigerator shelf and can be adjusted from side to side
Door storage
Store items right on the door for easy access
Full freezer shelf
Removable shelf for added convenience
Interior light
Automatically illuminates when you open the door
Adjustable thermostat
Manage the temperature with ease and accuracy
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE w/ DRAWINGS
FF1625SSQHVIM.pdf
Download TECHNICAL DRAWING (.dwg)
FF1620WSSHVIM_FF1625SSQHVIM...
