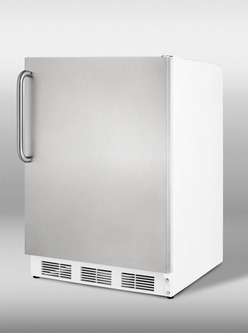

24" Wide Refrigerator-Freezer, ADA Compliant

SKU: CT67SSTBADA
DISCONTINUED- REPLACED BY CT661WSSTBADA
32.38" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101017259
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

Exterior
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
SS Hinges
Stainless steel top and bottom hinges
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security

ADA compliant

32 inch height for lower ADA counters

Fully finished white cabinet

Allows the unit to be used freestanding

Stainless steel door

Durable design with lasting elegance

Professional towel bar handle

A curved stainless steel handle provides generous room for a comfortable grip

Slim counter height dimensions

Less than 24 inches wide to fit tight spaces

Cycle defrost

Combines an automatic defrosting refrigerator with a manual defrost freezer to save unit energy and user maintenance

Dual evaporator cooling

SUMMIT's unique and efficient dual evaporator separately cools the refrigerator while maintaining zero degrees in the freezer

Zero degree freezer

Keep ice cream frozen and freezer burn-free in a freezer that reaches and maintains zero degrees

Adjustable glass shelves

Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Clear crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Door shelves

Store large bottles right on the door for easy access

Adjustable thermostat

Manage the interior temperature with ease and accuracy

Interior light

Automatically illuminates when you open the door

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

SUMMIT's CT67ADA series features refrigerator-freezers designed for quality cooling that meets ADA guidelines for lower counter height.

The CT67SSTBADA uses SUMMIT's own dual evaporator system to separately cool the freezer and fresh food sections. Cycle defrost helps to reduce user maintenance on the refrigerator while maintaining a zero degree freezer that keeps frozen food frozen.

The deluxe interior is fully featured for convenient storage. Adjustable glass shelves let you organize your space, with door racks and a large crisper providing additional options. Interior lighting and an adjustable thermostat complete the package.

At under 24 inches wide the CT67SSTBADA fits well in locations with space limitations. This freestanding unit has a lower height of 32 inches for ADA compliance. The white cabinet is fitted with a fully wrapped stainless steel door. A curved towel bar handle in brushed stainless steel adds modern elegance with easy-grip comfort.

The CT67 has long proven itself to have one of the best temperature performance records in the industry. With over five cubic feet of storage capacity, this model is leader in quality, reliability, and convenience.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
