SPECIFICATIONS

Overview
Height 33.5"
Width 23.63"
Depth 23.5"
Depth with Handle 24.13"
Depth with door at 90° 45.13"
Capacity 5.1 cu.ft.
Defrost Type Cycle
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Shipping Weight 100.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 19.5"
Refrigerator - Interior Width 20.5"
Refrigerator - Interior Depth 17.0"
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0"
Freezer - Interior Width 19.0"
Freezer - Interior Depth 11.5"
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Freon R134a
Freon Amount 2.6
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 2
Compressor Step Height 7.0"
Compressor Step Width 20.5"
Compressor Step Depth 5.0"

AVAILABLE UPGRADES

Exterior
CAS3 3" Casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Legs
6" high leveling legs
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK Kickplate
Add a stainless steel kickplate
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
CAS6 6" Casters
6" high NSF listed casters
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
KEY
Extra keys available for purchase
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

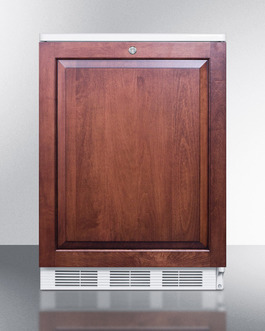

CT66LIF

DISCONTINUED- REPLACED BY CT66LBIIF

33.5" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
AccuCold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The CT66J Series includes freestanding refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.

Sized with a 24" footprint, the CT66LIF offers over 5 cu.ft. of storage capacity. This counter height model is designed for freestanding use. It features a white cabinet finish. The reversible door includes a factory installed lock and an integrated frame designed to accept full overlay panels for a custom look. Users provide their own handle.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, while the manual defrost freezer compartment can maintain zero degrees. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66LIF has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66 Series. For built-in undercounter applications, see the CT66LBIIF.

FEATURES

Slim counter height dimensions
Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
Fully finished white cabinet
Allows the unit to be used freestanding
Factory installed lock
Keyed lock offers added security
Reversible door
User-reversible door swing for added flexibility
Integrated door frame
Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 23 5/16" W x 28 1/4" H)
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Dual evaporator cooling
Our unique and efficient design separately cools the refrigerator while maintaining zero degrees in the freezer with two evaporators
Zero degree freezer
Static manual defrost freezer section offers more stability
Adjustable shelves
Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
Crisper drawer
Get the longest life and best taste out of produce by storing greens in lower slide drawer
Door shelves
Keep tall bottles and condiments right on the door for convenient access
Interior light
Automatically illuminates when the door is opened
Adjustable thermostat
Dial thermostat located inside for easy temperature management
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals

DOWNLOADS

Download BROCHURE
CT66LIF.pdf
Download USE & CARE
IF_installation.pdf
Download USE & CARE
CT66J_Manual.pdf
