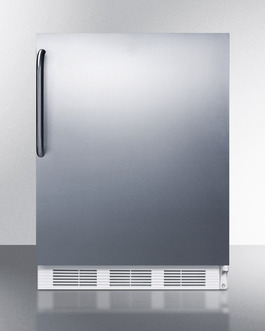

24" Wide Built-In Refrigerator-Freezer, ADA Compliant

SKU: CT66JBISSTBADA
Made in Europe with a unique dual evaporator system to ensure better cooling in each section
DISCONTINUED- REPLACED BY CT661WBISSTBADA
32.38" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101035116
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

Exterior
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
SS Hinges
Stainless steel top and bottom hinges
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
L-SideLock
Add a single keyed lock located on the door's side
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

ADA compliant

32" high to fit under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter

Fully finished white cabinet

Allows the unit to be used freestanding

Slim undercounter dimensions

Less than 24" wide with a generous storage capacity

Stainless steel door

Durable 304 grade wrapping

Professional towel bar handle

Curved handle in brushed stainless steel offers a sturdy grip with professional elegance

Dual evaporator

Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Cycle defrost

This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Adjustable shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Clear crisper drawer

Get the longest life and best taste out of produce by storing greens in a bottom crisper

Door storage

Store tall bottles and condiments right on the door for convenient access

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Interior light

Automatically illuminates when you open the door

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBIADA Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters.

At 32" high, the CT66JBISSTBADA can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a white cabinet and stainless steel wrapped door. A curved towel bar handle completes the professional look.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66JBISSTBADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66JBIADA Series.

NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
