Height 32.0"
Height to Hinge Cap 32.25"
Width 23.75"
Depth 23.5"
Depth with Handle 25.63"
Depth with door at 90° 45.63"
Capacity 5.1 cu.ft.
Defrost Type Cycle
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 148.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Door Swing RHD
Reversible Factory Reversible
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 19.5"
Refrigerator - Interior Width 20.5"
Refrigerator - Interior Depth 17.0"
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0"
Freezer - Interior Width 19.0"
Freezer - Interior Depth 11.5"
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Fan Type Exterior
Freon R134a
Freon Amount 2.6
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0"
Compressor Step Width 20.5"
Compressor Step Depth 5.0"


AC Keypad
Keypad lock powered by appliance power cord for keyless security
Battery-powered keypad lock installed for keyless security
PHDC Access Port
Factory installed probe hole and dry contact for monitoring equipment
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Door reversal to left hand swing
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Agion Door
Treat the door with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface

California residents:
click here for information on Proposition 65


32" H x 23.75" W x 23.5" D



Invalid Format
AccuCold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBIADA Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters.

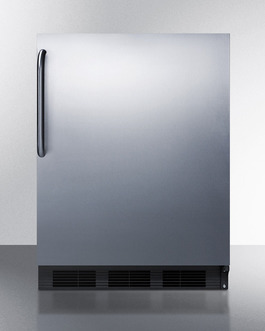

At 32" high, the CT66BCSSADA can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a fully wrapped stainless steel cabinet and door. A curved towel bar handle completes the professional look.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, while the manual defrost freezer compartment can maintain zero degrees. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable glass shelves, a clear crisper, and automatic interior lighting.

The CT66BCSSADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66JBIADA Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.


ADA compliant
32" high to fit under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
Slim undercounter dimensions
Less than 24" wide with a generous storage capacity
Complete stainless steel exterior
Fully wrapped in 304 grade stainless steel
Fully finished cabinet
Allows the unit to be used freestanding
Professional towel bar handle
Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Zero degree freezer
Static manual defrost freezer section offers more stability
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining zero degrees in the freezer with two evaporators
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Clear crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Door storage
Store tall bottles and condiments right on the door for convenient access
Interior light
Automatically illuminates when you open the door
Adjustable thermostat
Dial thermostat located inside for easy temperature management
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
