SPECIFICATIONS

Overview
Height 32.0"
Height to Hinge Cap 32.25"
Width 23.63"
Depth 23.5"
Depth with Handle 25.63"
Depth with door at 90° 45.63"
Capacity 5.1 cu.ft.
Defrost Type Cycle
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 148.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 19.5"
Refrigerator - Interior Width 20.5"
Refrigerator - Interior Depth 17.0"
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0"
Freezer - Interior Width 19.0"
Freezer - Interior Depth 11.5"
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Fan Type Exterior
Freon R134a
Freon Amount 2.6
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0"
Compressor Step Width 20.5"
Compressor Step Depth 5.0"

AVAILABLE UPGRADES

Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK Kickplate
Add a stainless steel kickplate
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Agion Door
Treat the door with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
PHDC Access Port
Factory installed probe hole and dry contact for monitoring equipment
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

CT66BBISSHHADA

32" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
AccuCold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBIADA Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters.

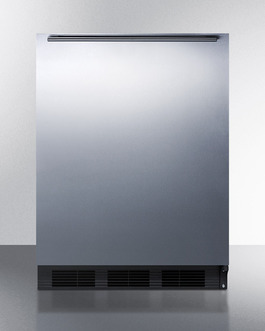

At 32" high, the CT66BBISSHHADA can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a black cabinet and reversible stainless steel wrapped door. A thin handle is mounted horizontally to complete the sleek, modern look.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, while the manual defrost freezer compartment can maintain zero degrees. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable glass shelves, a clear crisper, and automatic interior lighting.

The CT66BBISSHHADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66JBIADA Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

ADA compliant
32" high to fit under lower ADA compliant counters
Slim undercounter dimensions
Less than 24" wide with a generous storage capacity
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding
Stainless steel door
Durable 304 grade wrapping
Professional horizontal handle
Stainless steel handle mounted horizontally for a modern look
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining zero degrees in the freezer with two evaporators
Zero degree freezer
Static manual defrost freezer section offers more stability
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Door storage
Store tall bottles and condiments right on the door for convenient access
Clear crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Interior light
Automatically illuminates when you open the door
Adjustable thermostat
Dial thermostat located inside for easy temperature management
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
