CP35LLF2ADA
CP35LLF2ADA
angle
open
full
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height 32.0"
Width 18.75"
Depth 20.25"
Depth with door at 90° 37.25"
Capacity 2.9 cu.ft.
Defrost Type Cycle
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 290.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 102.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 19.0"
Refrigerator - Interior Width 16.0"
Refrigerator - Interior Depth 14.0"
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 1
Refrigerator - Full Door Shelves 2
Freezer - Interior Height 6.0"
Freezer - Interior Width 14.0"
Freezer - Interior Depth 10.5"
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Freon R134a
Freon Amount 2.6
High Side PSI 235.0
Low Side PSI 140.0
Level Legs 4
Compressor Step Height 8.0"
Compressor Step Width 19.0"
Compressor Step Depth 4.0"

AVAILABLE UPGRADES

Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Lock
KEY
Extra keys available for purchase

CP35LLF2ADA

DISCONTINUED- REPLACED BY CP351WLLF2ADA

Made in North America with 20 years of proven reliability

32" H x 18.75" W x 20.25" D

OVERVIEW

WHERE TO BUY

Invalid Format

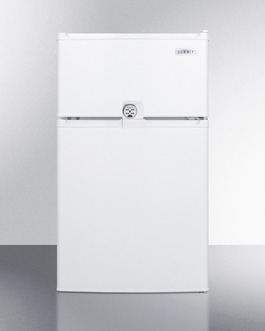

SUMMIT CP35LLF2ADA puts the most advanced energy efficient refrigerator-freezer technology into a two-door compact unit with a uniquely thin 19" width and 32" height for ADA compliant settings.

Cycle defrost provides automatic defrost of the refrigerator to save you on regular maintenance and manual defrost of the freezer to save energy and prevent freezer burn.

Our unique dual evaporator separately cools the refrigerator while keeping the freezer at zero degrees. Fresh food stays fresh and frozen food stays frozen.

The refrigerator section contains generous door storage for large bottles, an adjustable thermostat for easy temperature management, and a fruit and vegetable crisper to keep your greens under the right conditions. The top freezer is generously sized and includes a convenient door shelf for organization efficiency. This model includes a single combination lock (with key override) that secures both compartments.

Fully featured and ideally sized, the CP35LLF2ADA is the perfect unit for colleges, homes, and other settings looking to save on space but maximize quality and savings.

FEATURES

ADA compliant
32" height for use in ADA compliant settings
Thin-line design
Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots
LLF2 lock
Combination lock with key override secures both sections
Cycle defrost
Combines an automatic defrosting refrigerator with a manual defrosting freezer to save energy but protect food
Fully finished white cabinet
Allows the unit to be used freestanding
Interior light
Automatically illuminates when the refrigerator door is opened
Adjustable shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Crisper drawer
Get the longest life and best taste out of produce by storing greens in lower slide drawer
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE
CP35LLF2ADA.pdf
Download USE & CARE
CP35manual.pdf
Energy Guide
