Height 32.0"
Height to Hinge Cap 32.5"
Width 19.25"
Depth 21.38"
Depth with door at 90° 39.5"
Capacity 4.1 cu.ft.
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 339.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs.
Shipping Weight 85.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Door Swing RHD
Reversible Factory Reversible
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 28.75"
Refrigerator - Interior Width 15.75"
Refrigerator - Interior Depth 17.75"
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Freon R134a
Freon Amount 1.75
High Side PSI 205.0
Low Side PSI 103.0
Level Legs 2
Wheels 2


TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Door reversal to left hand swing
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Agion Door
Treat the door with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

California residents:
click here for information on Proposition 65



32" H x 19.25" W x 21.38" D

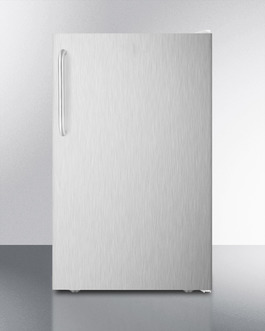

SUMMIT CM405BIADA series features 20" wide refrigerator-freezers designed for built-in use under lower ADA compliant counters.

Sized at just under 20" wide, the CM405BISSTBADA is 32" high to fit under lower ADA counters. This model has a white cabinet with a 304 grade stainless steel wrapped door and pro towel bar handle. The manual defrost interior includes adjustable wire shelves, a clear crisper drawer and an ice cube compartment for convenient storage. This unit includes and interior light with an on/off rocker switch.

With easy-fitting dimensions, user-friendly features and an elegant design, the CM405BISSTBADA is ideal for any household or professional setting in need of a reliable refrigerator-freezer. This model can be used built-in or freestanding.


ADA compliant
32" high to fit under lower ADA compliant counters
Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished white cabinet
Allows the unit to be used freestanding
Stainless steel wrapped door
Durable 304 grade wrapping
Professional towel bar handle
A curved stainless steel handle provides generous room for a comfortable grip
Manual defrost
Efficient performance with reliable temperature stability
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Interior light
Turn the light on and off with a convenient rocker switch
Adjustable thermostat
Manage the temperature with ease and accuracy
Flat door liner
Easy to clean, with more depth for storage
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals


Energy Guide


Quick View


Power failure alarm with hospital grade cord, designed to be used on virtually any 115/120V appliance
