CM405BI7IF
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height 33.5"
Height to Hinge Cap 34.0"
Width 19.25"
Depth 21.38"
Depth with door at 90° 39.5"
Capacity 4.1 cu.ft.
Defrost Type Manual
Door Panel-Ready
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 339.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs.
Shipping Weight 85.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 28.75"
Refrigerator - Interior Width 15.75"
Refrigerator - Interior Depth 17.75"
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Freon R134a
Freon Amount 1.75
High Side PSI 205.0
Low Side PSI 103.0
Level Legs 2
Wheels 2

AVAILABLE UPGRADES

Exterior
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option

CM405BI7IF

Commercial approved
This unit meets NSF standards and is designed for commercial use. It complies with the U.S. Department of Energy (DOE) standards for commercial energy usage, but may not meet DOE household standards. For information on its commercial sanitation listing, see Specifications.

DISCONTINUED

33.5" H x 19.25" W x 21.38" D

OVERVIEW

WHERE TO BUY

Invalid Format
SUMMIT CM405BI7 commercial series features 20" wide refrigerator-freezers designed for built-in use under counters.

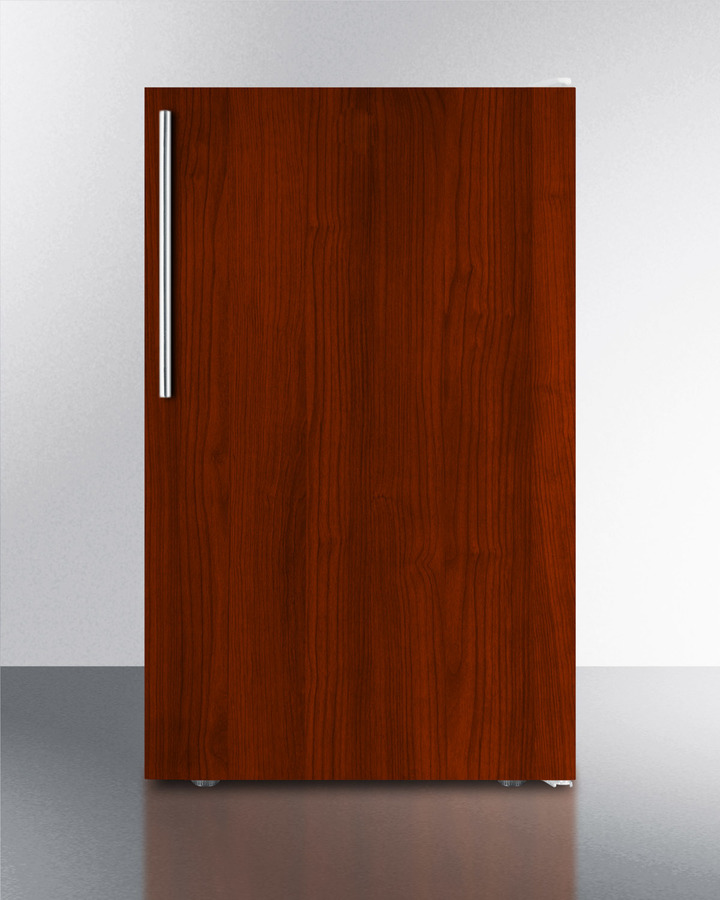

Sized at just under 20" wide, the ETL-S listed CM405BI7IF can be used built-in or freestanding. This model has a white exterior and reversible door with an integrated frame that accepts full custom overlay panels. The manual defrost interior includes adjustable wire shelves, a clear crisper drawer and an ice cube storage compartment for convenient storage. Additional features include an interior light and hospital grade cord for added safety in high traffic areas.

With easy-fitting dimensions and user-friendly features, the CM405BI7IF is ideal for any commercial setting in need of a reliable refrigerator-freezer.

FEATURES

Commercially listed
ETL-S listed to NSF standards for commercial use
Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished white cabinet
Allows the unit to be used freestanding
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Integrated door frame
Stainless steel door frame accepts overlay panels for users to create a custom look over the front (panel size: 19 1/2" W x 31 1/2" H and up to 3/4" thick)
Reversible door
User reversible door swing
Manual defrost
Efficient performance with reliable temperature stability
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Interior light
Turn the light on and off with a convenient rocker switch
Adjustable thermostat
Manage the temperature with ease and accuracy
Flat door liner
Easy to clean, with more depth for storage
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE
CM405BI7IF.pdf
Energy Guide
