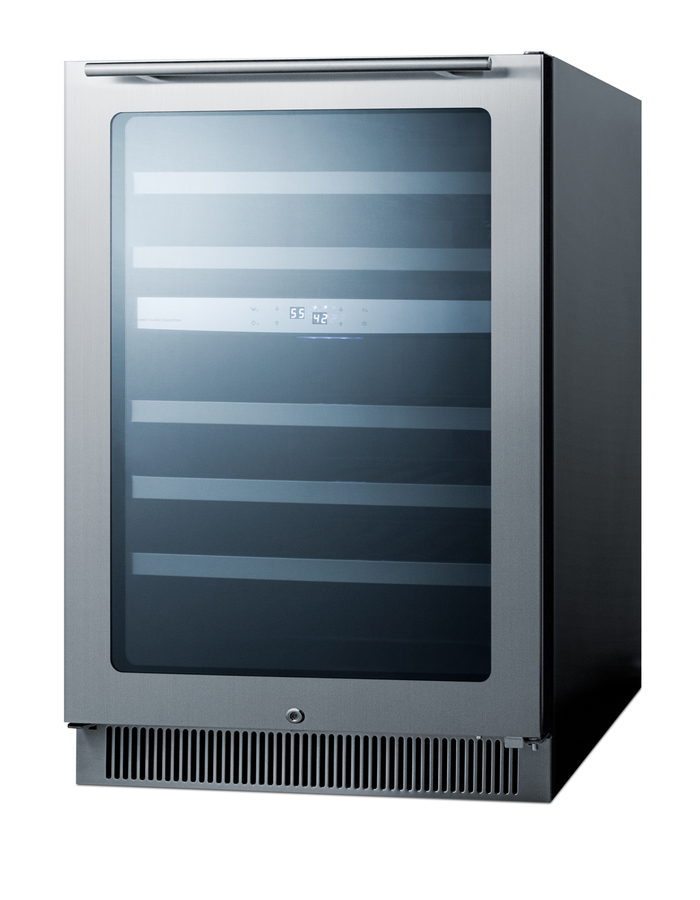

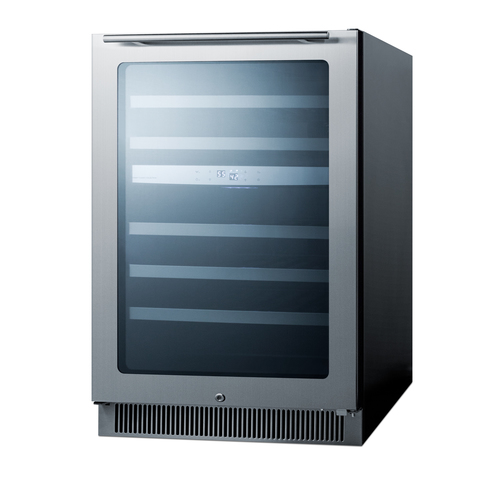

CL24WC2 angle

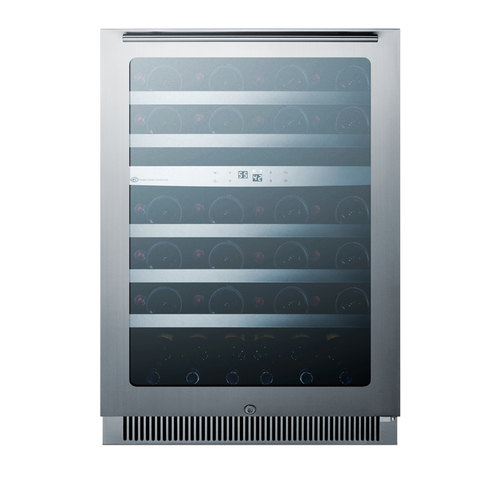

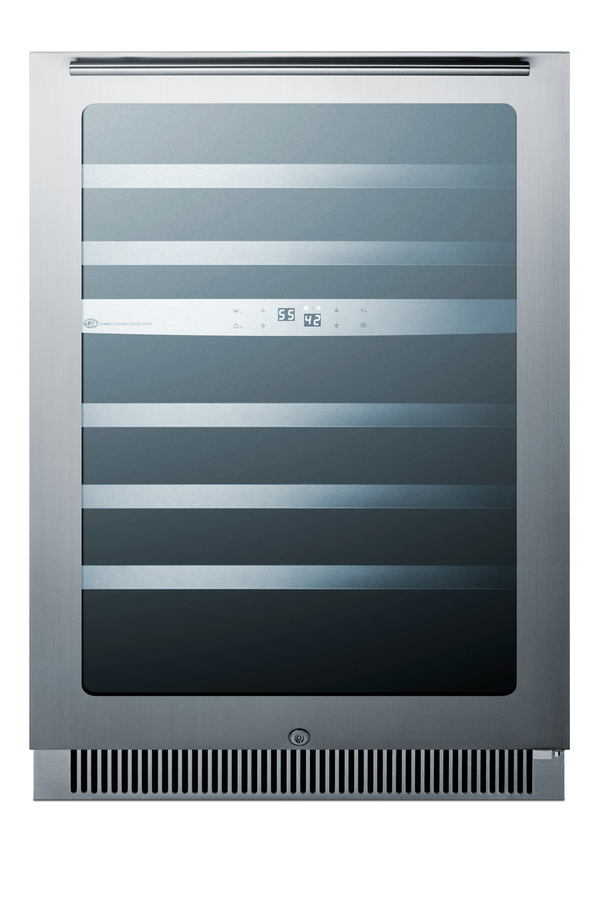

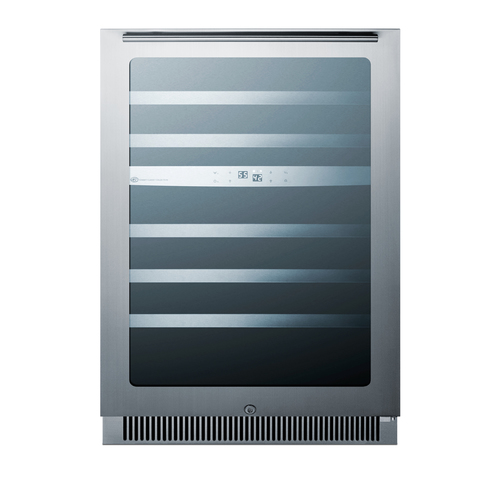

CL24WC2 full

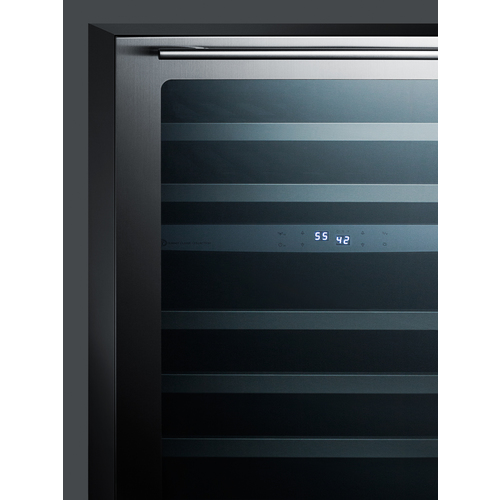

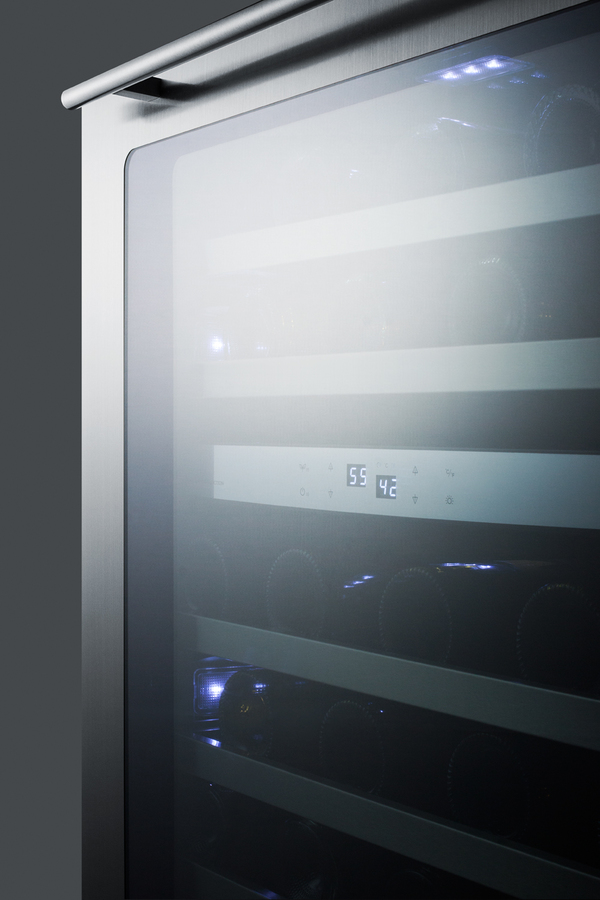

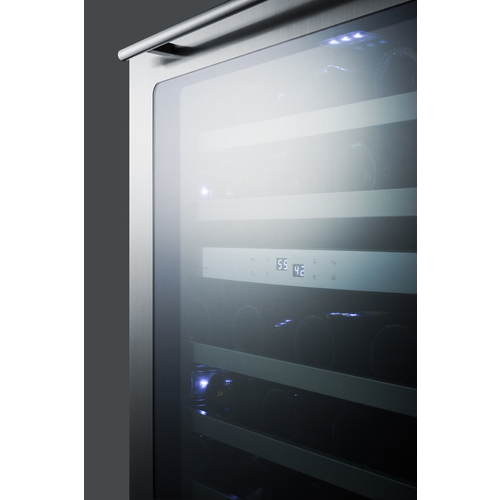

CL24WC2 door detail

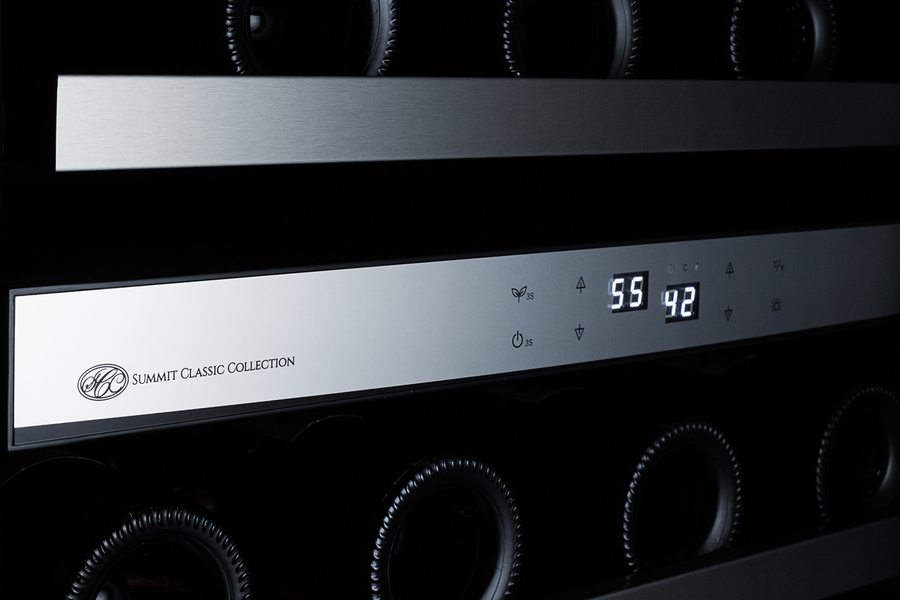

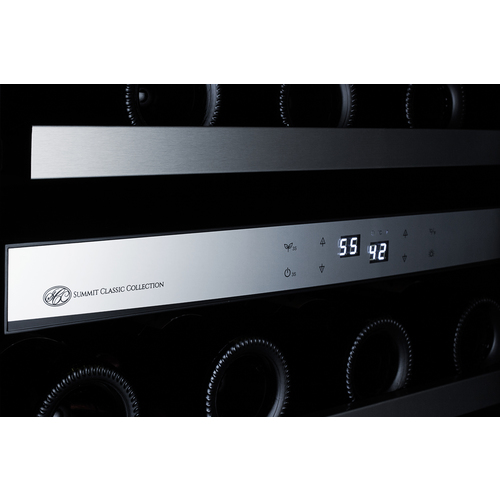

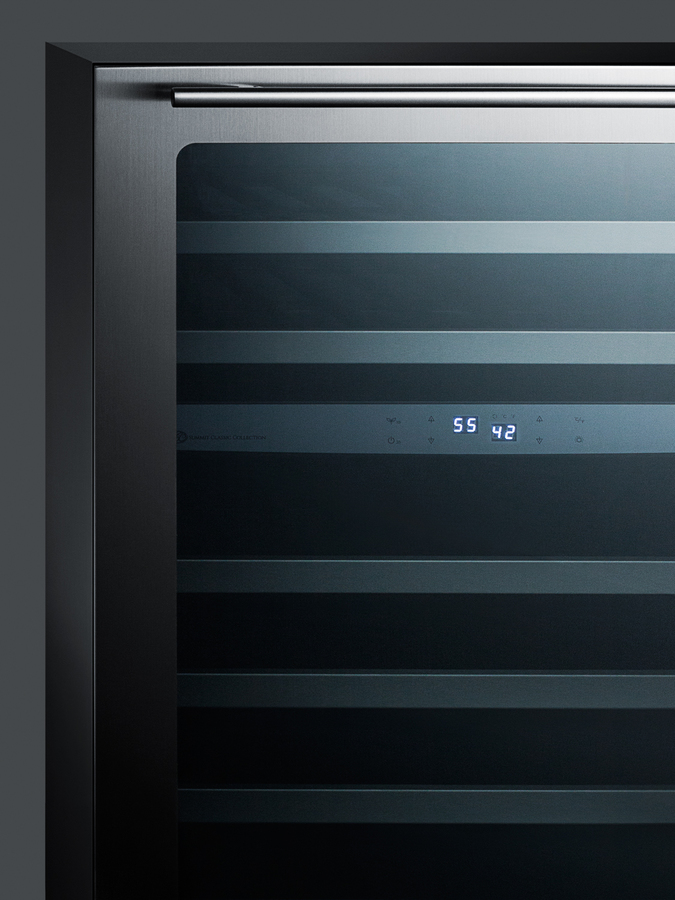

CL24WC2 control panel

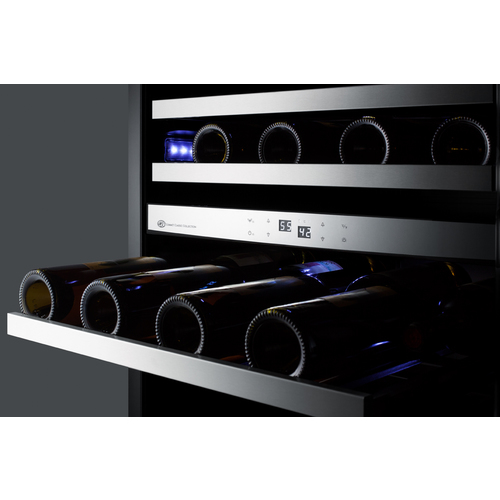

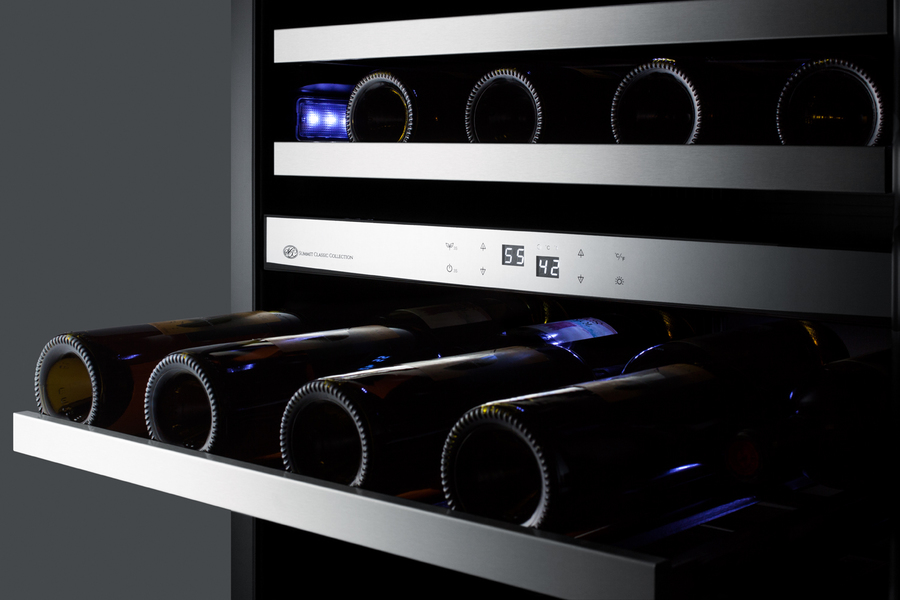

CL24WC2 shelf
CL24WC2 glass door angle

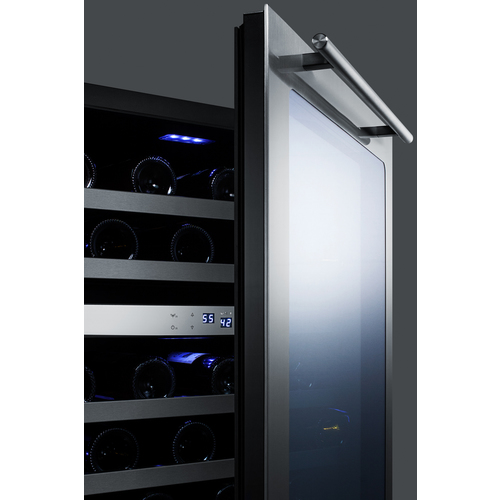

CL24WC2 open door
SHARE THIS PRODUCT
Pinterest E-mail a Friend Print

SPECIFICATIONS

Overview
Height 34.5"
Width 23.88"
Depth 23.38"
Depth with Handle 25.0"
Depth with door at 90° 46.0"
Capacity 5.4 cu.ft.
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety CSA
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 119.0 lbs.
Shipping Weight 140.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 3.0 oz.
High Side PSI 250.0
Low Side PSI 103.0
Interior Height 1 9.75"
Interior Width 1 20.75"
Interior Depth 1 18.0"
Compressor Step Height 4.38"
Compressor Step Width 20.75"
Compressor Step Depth 6.0"
Level Legs 2
Interior Height 2 16.38"
Interior Width 2 20.75"
Interior Depth 2 18.0"

AVAILABLE UPGRADES

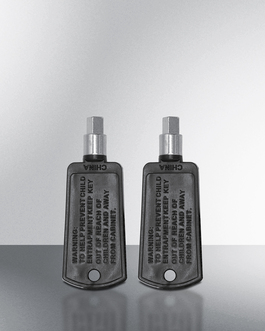

Lock
KEY
Extra keys available for purchase
Exterior
LHD
Door reversal to left hand swing

CL24WC2

Delivery
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Ultra thin tinted door with seamless stainless steel trim

34.5" H x 23.88" W x 23.38" D

OVERVIEW

WHERE TO BUY

Invalid Format
The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.

The CL24WC2 is a dual zone wine cellar designed to store red and white wine under the ideal conditions. The 24" footprint is perfectly sized for kitchen and wet bar cutouts. The front-breathing design allows built-in installation under counters, while the fully finished jet black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the softly tinted low-e glass door for a striking look. A horizontally mounted 16mm handle and designer kickplate offer an added touch that complements all decor.

Inside, the CL24WC2 features two independent temperature zones that let you keep up to 46 bottles between 40º and 64ºF. White LED lighting offers an elegant and energy efficient illumination inside the jet black interior. Five smoothly gliding shelves come in a black wooden finish, with stainless steel trim to add an elegant touch. The interior control panel comes in an attractive mirror finish and includes intuitive touch controls for easy operation. The digital temperature readout can be displayed in Celsius or Fahrenheit. Additional features include a user-reversible door, factory installed lock, conservation mode for energy savings, and a temperature memory function to restore set temperature in the case of power loss. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature.

With its elegant design and user-friendly features, the CL24WC2 lets you preserve and display your collection in true luxury.

FEATURES

Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding
Low-e glass door
Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass
Seamless stainless steel trim
Glass is framed by seamless 304 grade stainless steel
Digital thermostat
Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
Two temperature zones
Independent zones let you accommodate all varietals under the right temperature
White LED lighting
Unique white light offers elegant illumination for the jet black interior
Automatic defrost
Reduced maintenance with auto defrost system
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Reversible door
User-reversible door swing allows for more flexibility in placing the unit
Stainless steel kickplate
Completes the professional look down to the toe kick
Professional handle
Horizontally mounted handle in brushed stainless steel complements many styles of cabinetry
Stainless steel trimmed wooden shelves
Black wooden shelves feature stainless steel trim for an added touch of elegance
Gliding shelf system
Shelves roll out smoothly for easier loading
Factory installed lock
Keyed lock ensures a secure interior
Temperature alarm
Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
Open door alarm
Audible alarm will sound if the door is left ajar
Sealed back
Space saving design with easier cleanability
Energy conservation mode
Lets you disable some of the electrical features to save on energy use
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE w/ DRAWINGS
CL24WC2.pdf
Download TECHNICAL DRAWING (.dwg)
CL24WC2WINECELLARA-C2000.dwg
