CL15WC

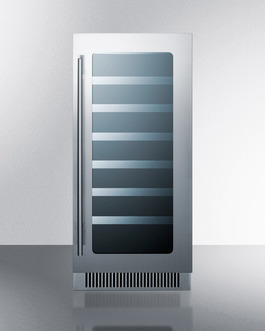

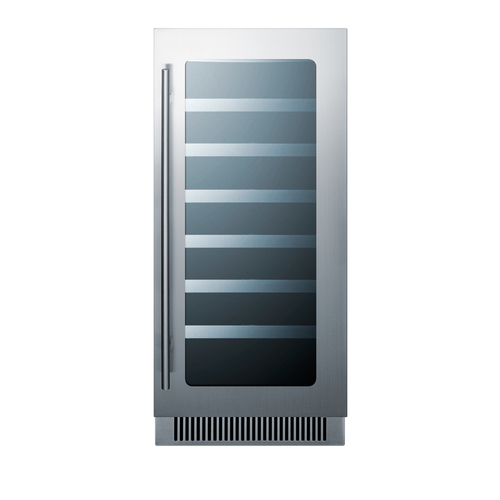

CL15WC

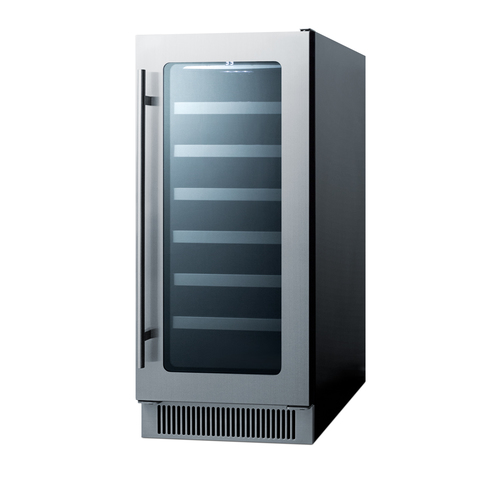

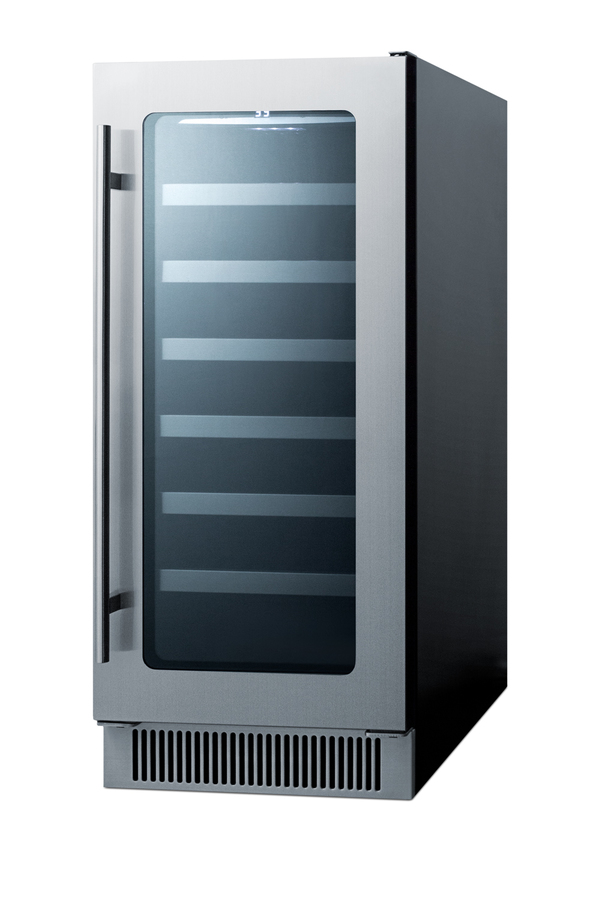

CL15WC angle

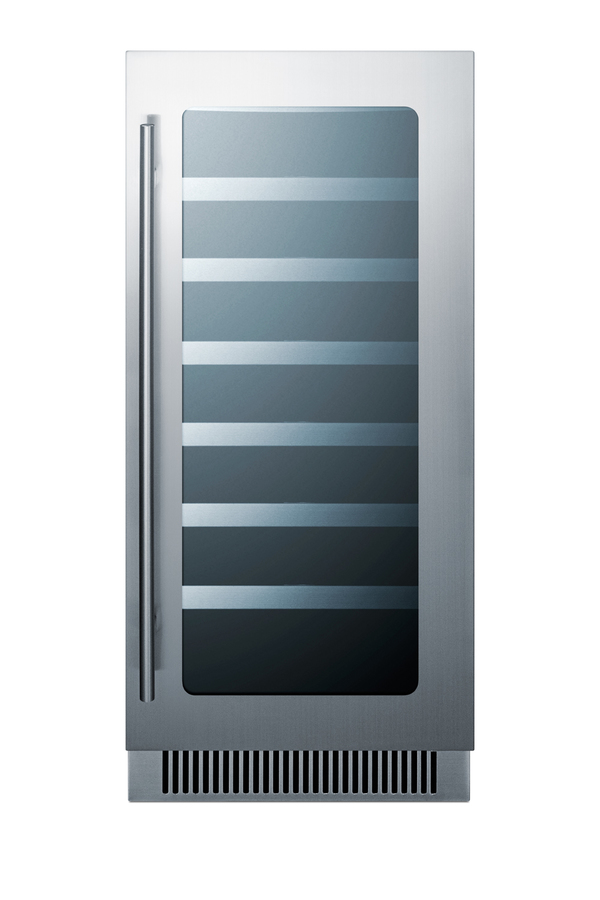

CL15WC full

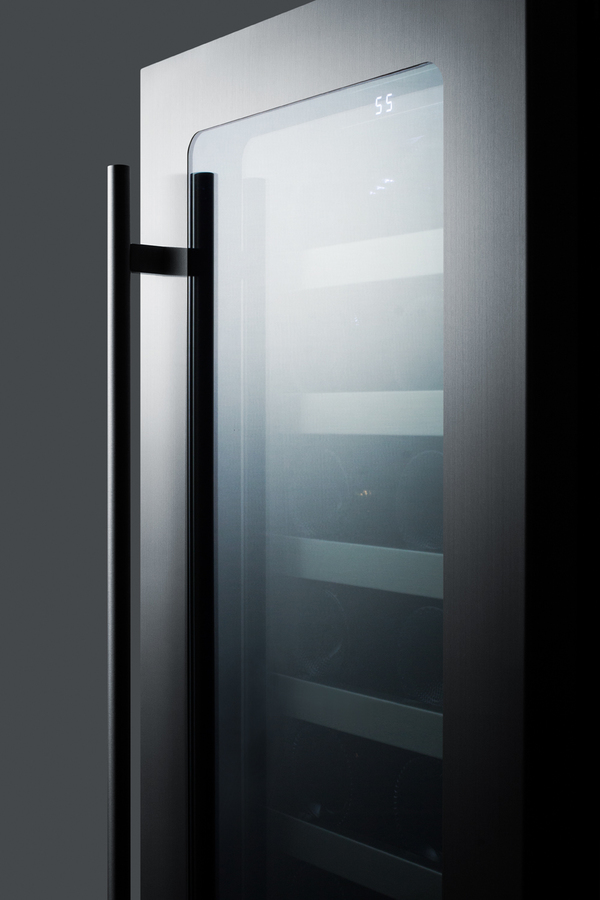

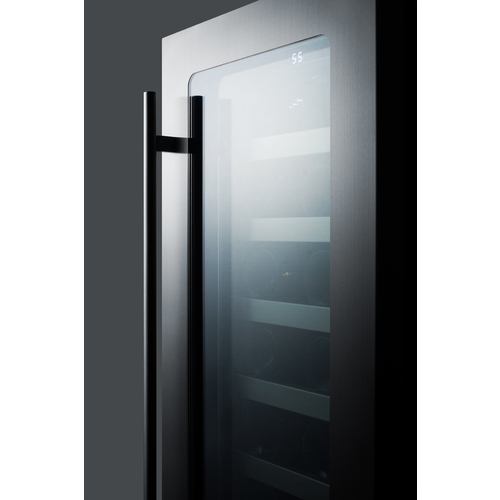

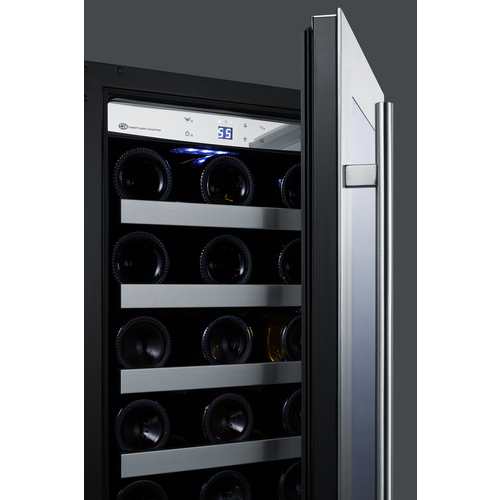

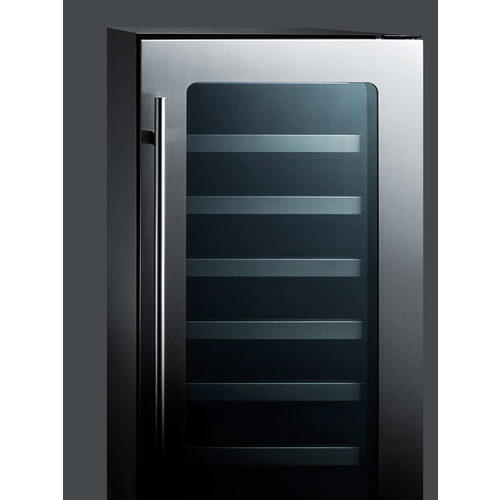

CL15WC door detail

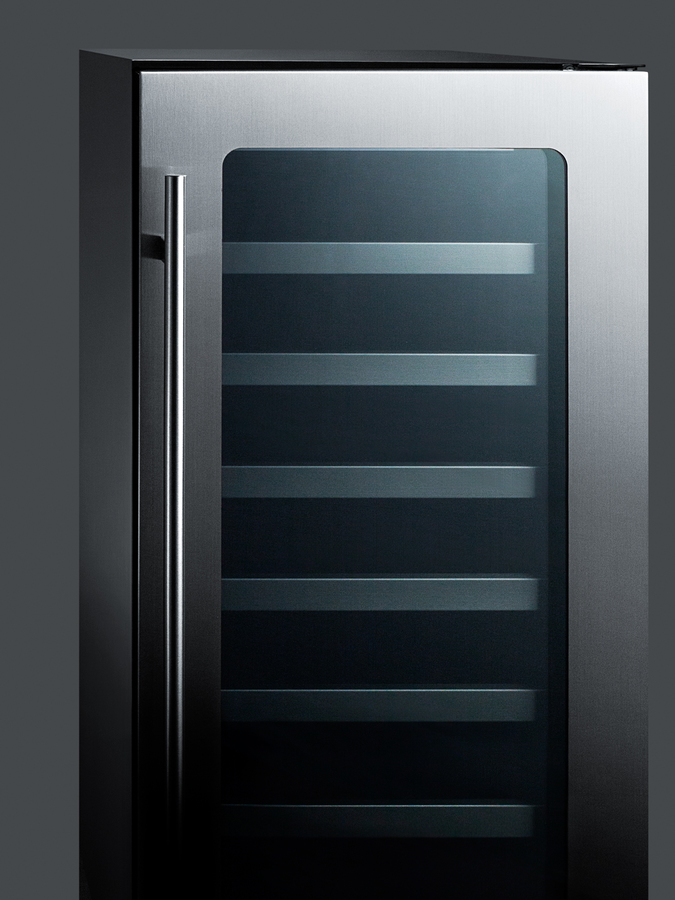

CL15WC side door

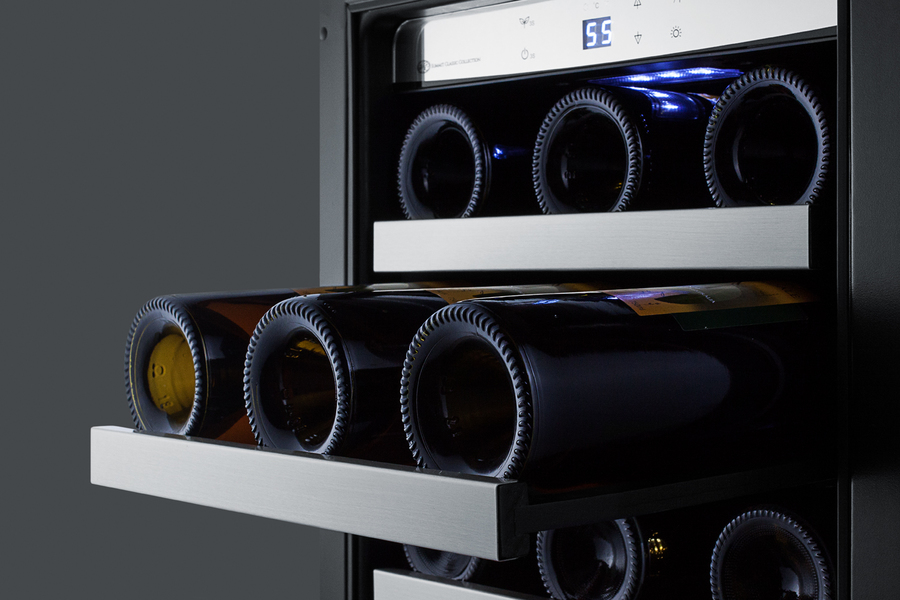

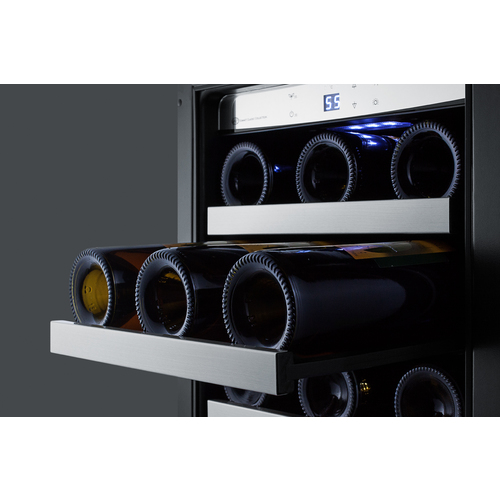

CL15WC shelf

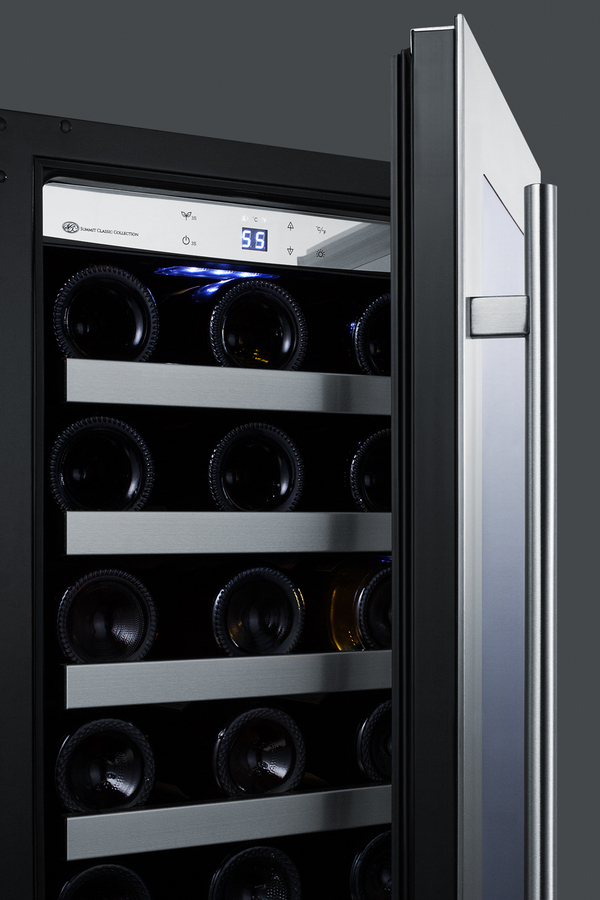

CL15WC open
SHARE THIS PRODUCT
Pinterest E-mail a Friend Print

SPECIFICATIONS

Overview
Height 34.5"
Width 15.0"
Depth 23.38"
Depth with Handle 25.0"
Depth with door at 90° 37.25"
Capacity 3.2 cu.ft.
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety CSA
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs.
Shipping Weight 100.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 1.59 oz.
High Side PSI 250.0
Low Side PSI 103.0
Interior Height 1 26.0"
Interior Width 1 12.0"
Interior Depth 1 18.0"
Compressor Step Height 4.5"
Compressor Step Width 12.0"
Compressor Step Depth 5.75"
Level Legs 2

AVAILABLE UPGRADES

Exterior
LHD
Door reversal to left hand swing

CL15WC

Delivery
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Ultra thin tinted door with seamless stainless steel trim

34.5" H x 15" W x 23.38" D

OVERVIEW

WHERE TO BUY

Invalid Format
The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.

At just 15" wide, the CL15WC is the perfect wine cellar to complete any home wet bar. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. The seamless stainless steel door trim blends right into the softly tinted low-e glass, with a sleek stainless steel handle and designer kickplate completing the stunning look. Inside, white LED lighting complements the black interior and illuminates your collection.

The CL15WC can store up to 34 bottles inside. Slide-out wooden shelves feature a black finish and stainless steel trim. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, conservation mode for energy savings, and a temperature memory function to restore set temperature in the case of power loss.  A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature.

Uniquely styled and fully featured, the CL15WC brings true luxury to small kitchen spaces.

FEATURES

Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding
Low-e glass door
Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass
Seamless stainless steel trim
Glass is framed by seamless 304 grade stainless steel
Digital thermostat
Electronic controls for precise temperature management
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
Stainless steel trimmed wooden shelves
Black wooden shelves feature stainless steel trim for an added touch of elegance
White LED lighting
Unique white light offers elegant illumination for the jet black interior
Professional handle
Vertically mounted handle in brushed stainless steel features a sleek 16mm diameter that suits many popular styles of cabinetry
Reversible door
User-reversible door swing allows for more flexibility in placing the unit
Stainless steel kickplate
Completes the professional look down to the toe kick
Temperature alarm
Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
Open door alarm
Audible alarm will sound if the door is left ajar
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Automatic defrost
Reduced maintenance and steady temperature performance
Sealed back
Space saving design with easier cleanability
Energy conservation mode
Lets you disable some of the electrical features to save on energy use
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
