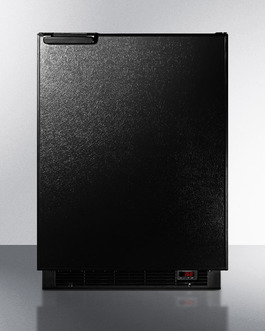

24" Wide Built-In Refrigerator-Freezer

SKU: BI605BFF
Full 6 c.f of capacity with 20 years of proven quality
DISCONTINUED
34.75" H x 23.75" W x 24.5" D
(88cm H x 60cm W x 62cm D)

Overview
Height of Cabinet 34.38" (87 cm)
Height to Hinge Cap 34.75" (88 cm)
Width 23.75" (60 cm)
Depth 24.5" (62 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 6.1 cu.ft. (173 L)
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety UL
Energy Usage/Year 342.0kWh/year
Amps 0.9
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Shipping Weight 130.0 lbs. (59 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101012803
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 20.25" (51 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 20.5" (52 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 21.0" (53 cm)
Freezer - Interior Depth 20.5" (52 cm)
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 3.0 oz.
High Side PSI 235.0
Low Side PSI 140.0
Level Legs 4

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security

Slim undercounter dimensions

Less than 24 inches wide, with a generous 6 c.f. of interior capacity

Built-in capable

Make the best use of space by installing your appliance under the counter

Fully finished black cabinet

Allows the unit to be used freestanding

Automatic defrost

Reduced maintenance with auto defrost system

Adjustable shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Door shelves

Store large bottles right on the door for easy access

Digital thermostat

Precise temperature management at the touch of a button

Interior light

Automatically illuminates when the door is opened

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

Solid construction meets great value in SUMMIT's BI605BFF, a built-in capable refrigerator-freezer designed for full convenience under counters.

With a slim 24" width and true 6 c.f. storage capacity, the BI605BFF is an ideal model for apartments, military housing, residential hotels, and other locations in need of efficient refrigeration in a compact size. It has a bottom condenser with front-vented fan-forced cooling to ensure safe built-in installation. The fully finished black cabinet also allows freestanding use.

The BI605FF uses full automatic defrost operation in both sections for reduced user maintenance. A digital thermostat makes temperature management simple and precise, with an external temperature readout that saves you the trouble of opening the reversible door. Adjustable shelves and door racks provide various storage options.

Download
BROCHURE w/ DRAWINGS
BI605BFF.pdf
Download
TECHNICAL DRAWING (.dwg)
BI605FFFEFRIGERATOR-FREEZERSA-C2000.dwg
Download
MSDS INFORMATION
MSDS_R134a_PS.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
