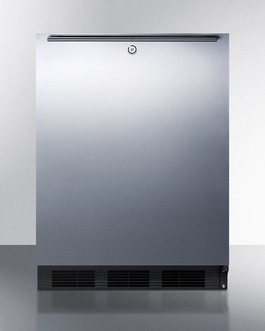

24" Wide Built-In All-Refrigerator, ADA Compliant
(82cm H x 60cm W x 60cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Height of Cabinet | 32.0" (81 cm) |
Height to Hinge Cap | 32.25" (82 cm) |
Width | 23.63" (60 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 24.75" (63 cm) |
Depth with door at 90° | 45.5" (116 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | Black |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Energy Usage/Year | 405.0kWh/year |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101018201 |
Refrigerator Features
|
|
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Glass |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Refrigerant Type | R134a |
Refrigerant Amount | 1.8oz. |
High Side PSI | 285.0 |
Low Side PSI | 88.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Dimensions
|
|
Interior Height | 26.25" (67 cm) |
Interior Width | 21.0" (53 cm) |
Interior Depth | 17.75" (45 cm) |
Compressor Step Height | 5.5" (14 cm) |
Compressor Step Width | 21.0" (53 cm) |
Compressor Step Depth | 5.5" (14 cm) |
AVAILABLE UPGRADES
Exterior | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
Interior | ||||||||||
|
||||||||||
Door | ||||||||||
|
FEATURES
32 inch height is designed to fit under ADA compliant counters
Less than 24 inches wide, with a generous 5.5 c.f. of storage capacity
Less than 24 inches wide, with a generous 5.5 c.f. of storage capacity
Allows the unit to be used freestanding
Keyed lock offers added security
Durable design with lasting elegance
Thin 14mm diameter on stainless steel handle, mounted horizontally across the door
Reduced user maintenance with automatic defrost
Cold wall design with hidden evaporator and seamless interior
Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
An easy-to-clean flat liner accepts large trays
Interior can accommodate large trays up to 19 1/2" x 15 1/2"
Turn the light on when you need it and off when you're done with a a convenient switch located behind the thermostat
Dial thermostat located inside for easy temperature management
User-reversible door swing for added flexibility
Environmentally friendly design does not contain ozone-damaging chemicals
DESCRIPTION
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The ALB751 Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters. The ALB753LBLSSHH is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a black cabinet and user-reversible stainless steel wrapped door with a factory installed lock. A thin handle with a 14mm diameter is mounted horizontally for a sleek, modern look. Inside, the ALB753LBLSSHH utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial. For more finish options, browse the entire ALB751 Series. NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
