24" Wide All-Refrigerator, ADA Compliant

SKU: AL752LBL
Made in Europe and sized for use in ADA compliant settings
DISCONTINUED- REPLACED BY FF7LBLKBIADA
32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101009360
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 88.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)

Exterior
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
SS Hinges
Stainless steel top and bottom hinges
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

ADA compliant

32" height for use in settings complying with ADA guidelines for lower counter height

Automatic defrost

Reduced user maintenance with automatic defrost operation

Front-mounted lock

Keyed lock offers added security

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

One-piece interior liner

Seamless interior ensures easy cleanup

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Reversible door

User-reversible door swing for added flexibility

Interior light on rocker switch

Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat

Deep shelf space

Interior accommodates large trays up to 19 1/2" x 15 1/2"

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

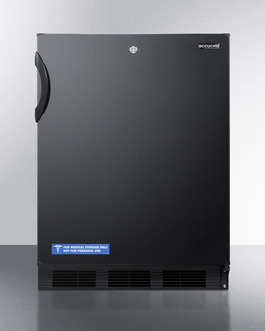

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750 Series features 24" wide all-refrigerators sized for freestanding use in ADA compliant settings.

The AL752LBL is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a black exterior and user-reversible door swing. A factory installed front lock offers convenient security.

Inside, the AL752LBL utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

For a built-in version of this unit, see the AL752LBLBI. For more finish options, browse the entire AL750 Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
