Height 32.0"
Height to Hinge Cap 32.25"
Width 23.63"
Depth 23.5"
Depth with Handle 24.25"
Depth with door at 90° 45.0"
Capacity 5.1 cu.ft.
Defrost Type Cycle
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs.
Shipping Weight 113.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Door Swing RHD
Reversible Factory Reversible
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 19.5"
Refrigerator - Interior Width 20.5"
Refrigerator - Interior Depth 17.0"
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0"
Freezer - Interior Width 19.0"
Freezer - Interior Depth 11.5"
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Freon R134a
Freon Amount 2.6
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0"
Compressor Step Width 20.5"
Compressor Step Depth 5.0"


PHDC Access Port
Factory installed probe hole and dry contact for monitoring equipment
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
L Lock
Add a single key lock to the door with the L option
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Door reversal to left hand swing
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Agion Door
Treat the door with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface

California residents:
click here for information on Proposition 65


32" H x 23.63" W x 23.5" D



Invalid Format
AccuCold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The AL650 Series includes freestanding refrigerator-freezers designed for optimum storage conditions and sized for use in settings complying with ADA guidelines.

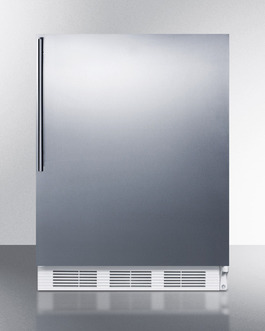

At 32" high, the AL650SSHV is designed for freestanding use in ADA compliant facilities. The 24" footprint offers overly 5 cu.ft. of storage capacity. This model features a white cabinet and a stainless steel wrapped door. A sleek handle completes the look.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, while the manual defrost freezer compartment can maintain zero degrees. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The AL650SSHV has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full AL650 Series. For built-in undercounter applications, see the AL650BISSHV.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.


ADA compliant
32" height for use in settings complying with ADA guidelines for lower counter height
Fully finished white cabinet
Allows the unit to be used freestanding
Stainless steel door
Durable design with lasting elegance
Professional stainless steel handle
Thin 14mm diameter on vertical stainless steel handle
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining zero degrees in the freezer with two evaporators
Zero degree freezer
Static manual defrost freezer section offers more stability
Adjustable shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Clear crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Door shelves
Store tall bottles and condiments right on the door for convenient access
Adjustable thermostat
Dial thermostat located inside for easy temperature management
100% CFC free
Environmentally friendly design without ozone-damaging chemicals


Download USE & CARE
